The ZK Teco door is configured on the settings panel of the corresponding objects AC ZK Door C3-100, AC ZK Door C3-200 and AC ZK Door C3-400 which are created on the basis of the AC ZK Controller C3-100, AC ZK Controller C3-200 and AC ZK Controller C3-400 objects.

To configure the ZK Teco door, do the following:

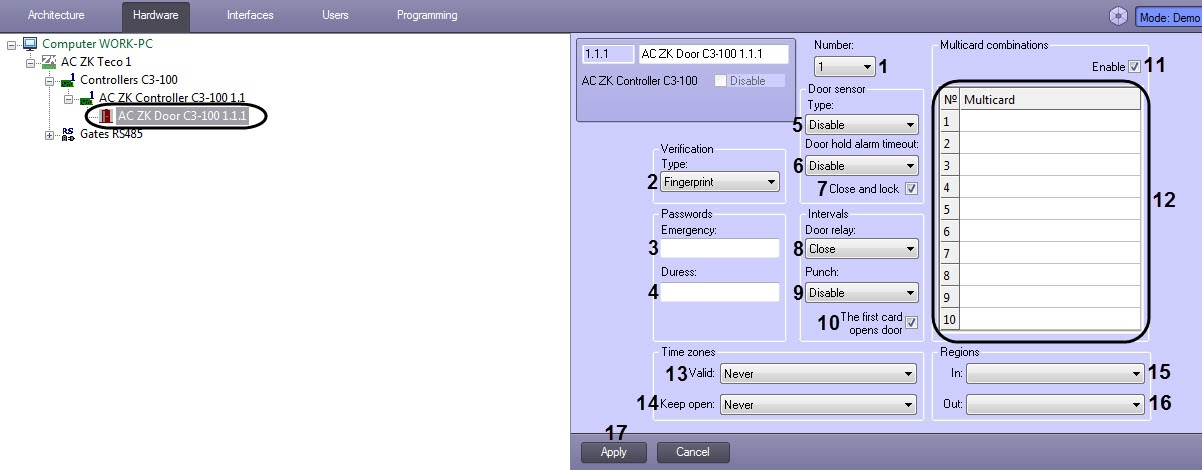

1. Go to the settings panel of the object which corresponds to the required ZK Teco door.

2. From the Number drop-down list (1), select the door number.
3. From the Type drop-down list (2), select the verification type:
   • Fingerprint - it is necessary to provide only a fingerprint to verify the user.
   • Card - it is necessary to provide only an access card to verify the user.
   • Card or fingerprint - it is necessary to provide either a card or a fingerprint to verify the user.
   • Card and fingerprint - it is necessary to first provide a card, and then provide a fingerprint to verify the user.
   • Card and password - it is necessary to first provide a card, and then enter the password to verify the user.
4. In the Emergency field (3), enter the password, which is used to open the door without verification.
5. In the Duress field (4), enter the password which is used to open the door without verification and triggering the alarm event.

6. From the Type drop-down list (5), select the type of door sensor:

   • Disable - the event about the user's pass is generated automatically, as soon as the user has been identified.

   • Normal open - the event about the user's pass is generated when the user actually passes closing the door reed switch.

   • Normal close - the event about the user's pass is generated when the user actually passes opening the door reed switch.

7. From the Door hold alarm timeout drop-down list (6), select the time in seconds after which, if the door is not closed, a door hold alarm will be generated:
   • Disable - the door holding will not be checked.
   • From 1 sec to 255 sec - waiting time for the door to close.
8. Set the Close and lock checkbox (7) to lock the door after its closing.
9. From the Door relay drop-down list (8), select the time interval after which the door will be opened upon presenting a card:
   • Close - the door will be permanently closed.
   • Open - the door will be permanently open.
   • From 1 sec to 255 sec - waiting time for the door to open.
10. From the Punch drop-down list (9), select the time interval for the card presenting.
    • Disable - the time for the access card presenting is not limited.
    • From 1 sec to 255 sec - waiting time for the access card presenting.

11. Set The first card opens door checkbox (10) if the first card is required to open the door.

    Access level of first card for the door opening is configured in the panel of user editing in the Access Manager interface module (see Specifics of user configuration in ZK Teco integration module).




12. Set the Enable checkbox (11) to enable the multicard mode.

    The multicard mode is used to open the door only after presenting more than one user access card combined in one or more groups.




13. From the drop-down list in the Multicard column (12) select the required multicard combination.

    Up to 10 multicards can be specified for one door.




14. From the Valid drop-down list (13) select the time zone in which the door is active. If the Never value is selected, the door will not operate.

15. From the Keep open drop-down list (14) select the time zone in which the door will be permanently opened.

    The door will be opened within 1 minute after starting the specified time zone.




16. From the In drop-down list (15) select the region located on the door exit side.
17. From the Out drop-down list (16) select the region located on the door entry side.
18. Click the Apply button (17).

The ZK Teco door is now configured.
