The Satel INTEGRA devices can be added in two ways:

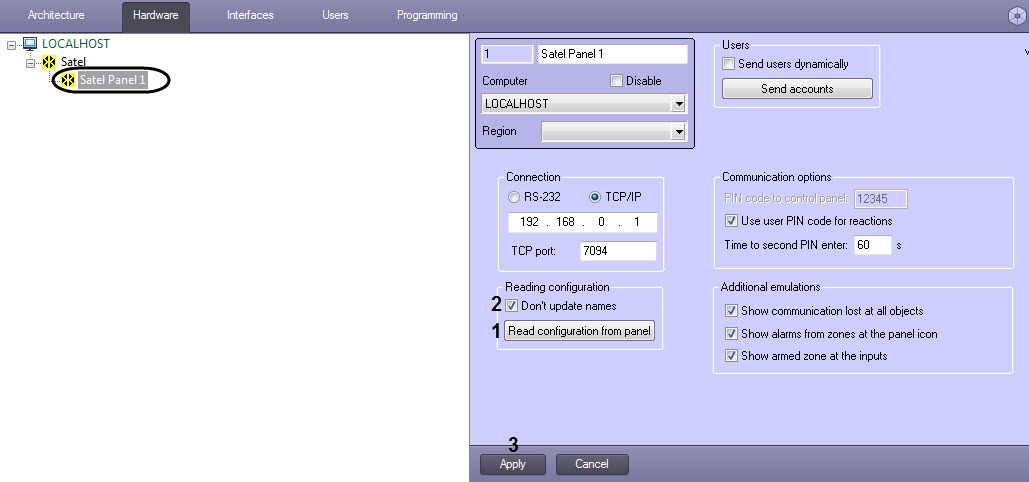

1. Automatically. In order to do this, go to the settings panel of the Satel Panel object and click Read configuration from panel (1).

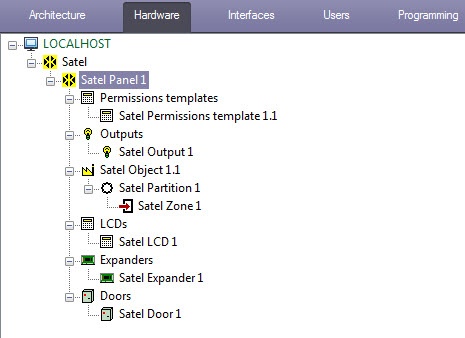

   As a result, a tree of objects corresponding to Satel INTEGRA devices connected will be created. The configuration can be updated in this way at any time when new devices are connected to the panel. If the names of the existing devices should be preserved, check the Don't update names box (2) and click Apply (3).

2. Manually by creating the corresponding objects on the basis of the Satel Panel object.


   All devices in the object tree are configured using the Satel INTEGRA vendor software or the hardware itself. For information on device configuration, please refer to the vendor documentation: http://www.satel.pl/en/installer/man.

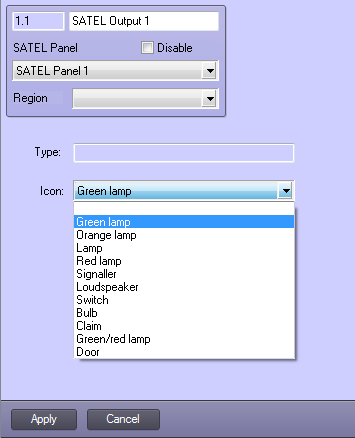

   The settings panel of each device object only displays the object type and enables selecting the icon that will be used to indicate the device on the Map (see Working with the Satel INTEGRA Integration Module).
