The readers connected to the Suprema controllers may be configured to supply fingerprints to the Access Manager service module. For information on the Access Manager module, see ACFA Intellect Service Modules User Guide.

The interaction between Suprema Biometrical ACS and the Access Manager module is configured on the Access Manager interface object settings panel on the Interfaces tab of the System Settings dialog.

To configure the interaction between the Suprema module and the Access Manager module, do the following:

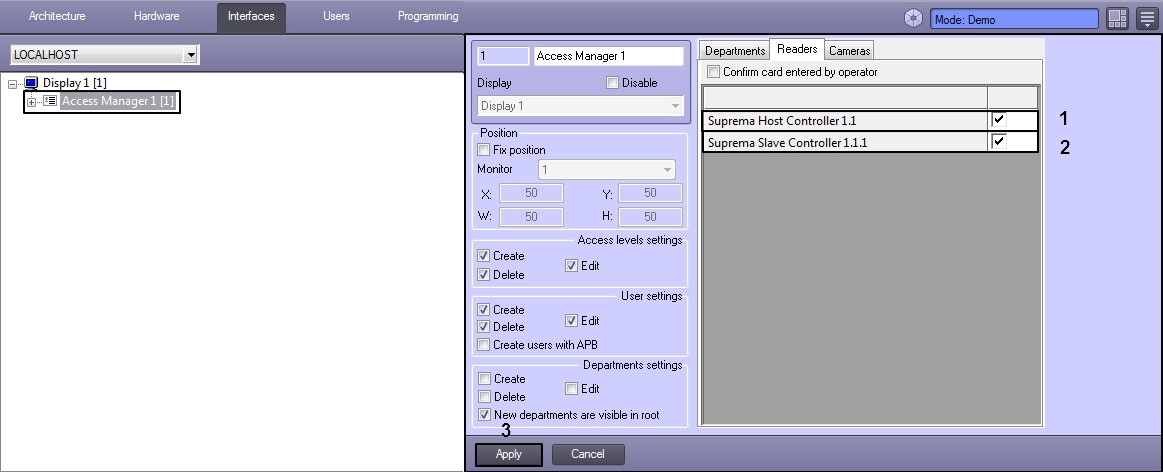

1. Go the settings panel of the Access Manager interface object and switch to the Readers tab.

2. Check the Suprema Host Controller to enable the readers connected to the Suprema Host Controller (1).
3. Check the Suprema Slave Controller to include the readers connected to the Suprema Slave Controller (2).
4. Click Apply to save the changes (3).

Configuring the interaction between the Suprema Biometrical ACS and the Access Manager module is complete.

The procedure for fingerprint scanning using the Suprema readers is described in detail in Adding the Suprema fingerprints section.
