The Recognized license plates report allows getting data about the license plates recognized within a specified time period.

The Recognized license plates report is related to the LPR Channel module (it is necessary to create and configure the corresponding object in the Intellect software)

To create the Recognized license plates report, do the following:

  1. Select the Recognized license plates report type (see Selecting the type of Auto report). As a result the dialog box for specifying the report parameters will be displayed.

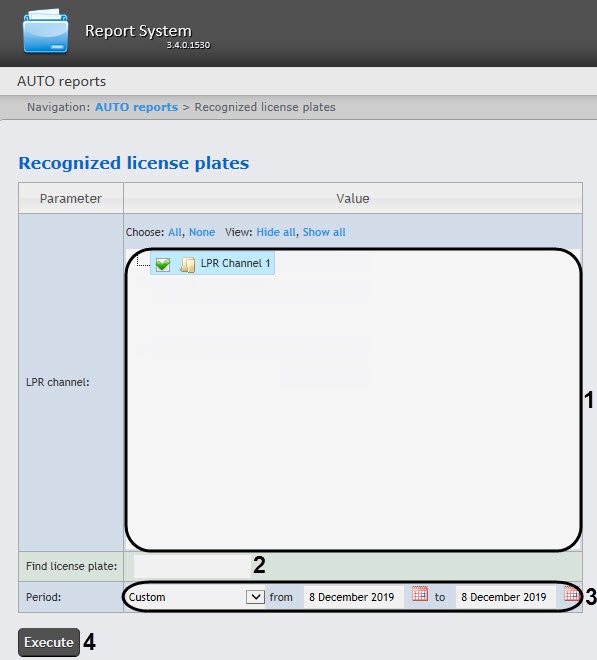

  2. Specify the report parameters in the following way:

    The choice of LPR Channels and the period is mandatory, the remaining filters are optional.


    1. From the LPR channel list (1), select the required LPR channels, which data will be used for the report generation.
    2. In the Find license plate field, you can specify a certain LP number by which all recognition events will be searched (2). Otherwise, the report will be built by all LP numbers recognized at the specified time interval.

    3. From the Period drop-down list, select the time interval for which the report should be built (3).

      If the Custom period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.


        4. Click Execute (4) to build the report. As a result, a report with the specified criteria will be displayed.

If the images of the recognized license plates and vehicle frames are stored on a disk in a folder, then in order to display the screenshots from the camera, it is necessary to configure the storage source of license plates and frames (see Setting up the source for storing license plates and frames for Recognized license plates and Recognized railway numbers reports).

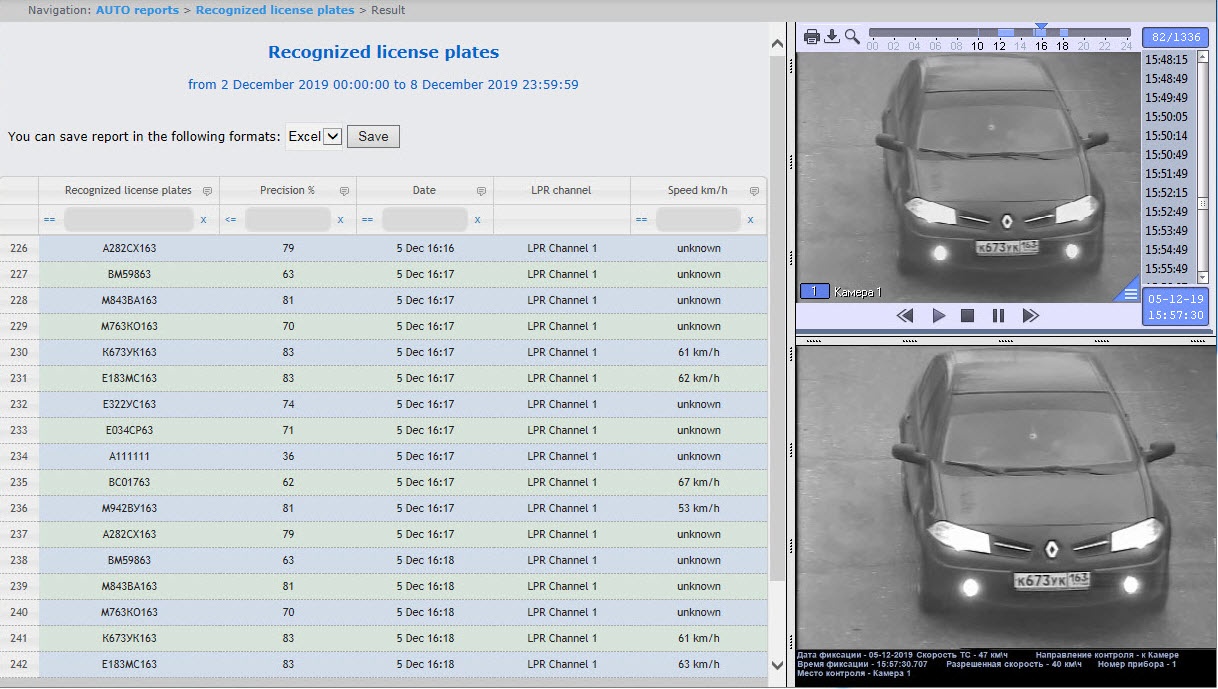

The report table contains the vehicle numbers, license plate recognition accuracy, date, the LPR channel, and the vehicle speed. When you click on the row of the table, a screenshot from the camera (in the lower right corner of the report) is displayed and if there is access to the video archive, the video is played (in the upper right corner of the report).

For details on how to work with this table, see Working with the generated Recognized license plates report and Recognized railway numbers report.

To save the report to a file, select the required report format and click the Save button.

This report cannot be generated automatically.
