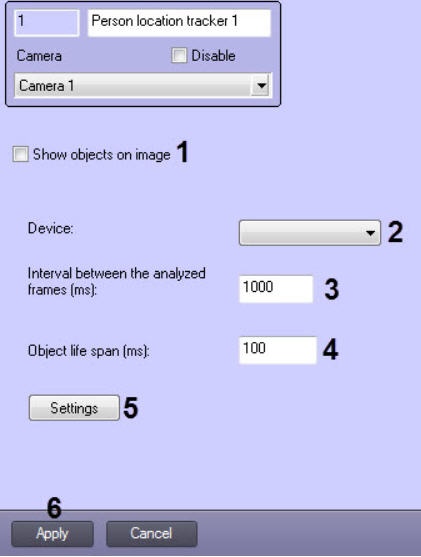

The Person location tracker software module is configured on the Person location tracker object settings panel. This object is created under the Camera object on the Hardware tab of the System settings window.

The Person location tracker software module is configured as follows:

1. Go to the Person location tracker object settings panel.

2. Set the Show objects on image checkbox (1) if it is necessary to highlight the detected object with a frame in the Monitor object interface window.

3. In the Device drop-down list (2) select the device where the person location tracker will operate:

   • Auto — automatic device selection.

   • CPU — central processing unit (not recommended).

   • Nvidia GPU (depends on the number of installed Nvidia video cards).

   • Movidius - Intel Neural Compute Stick или Intel HDDL.
   • IntelGPU - the embedded video core of the Intel CPU.

4. In the Interval between the analyzed frames (ms) field (3), enter the interval between the analyzed frames in milliseconds. The value must be in the range of 30 to 10000.

5. In the Object life span (ms) field (4), enter the time in milliseconds in which the found object will be considered as disappeared from the frame.

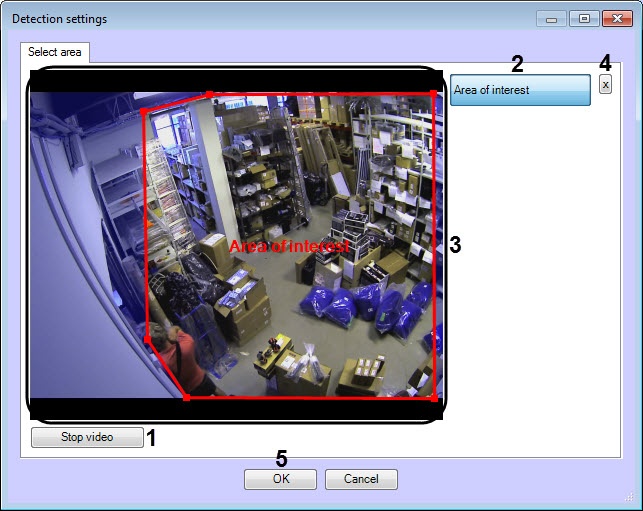

6. Click the Settings button (5). As a result, the Detection settings window will open.


   1. Click the Stop video button (1) to capture the video image.

   2. Click the Area of interest button (2) and specify the area in which the Person location tracker will operate (3).

      To delete the selected area, click thebutton (4).




   3. Click OK button (5).

7. Click the Apply button (6).

8. Perform pose detection configuration (see Configuring the pose detection).
