To set up the Vehicle Tracker interface window, do the following:

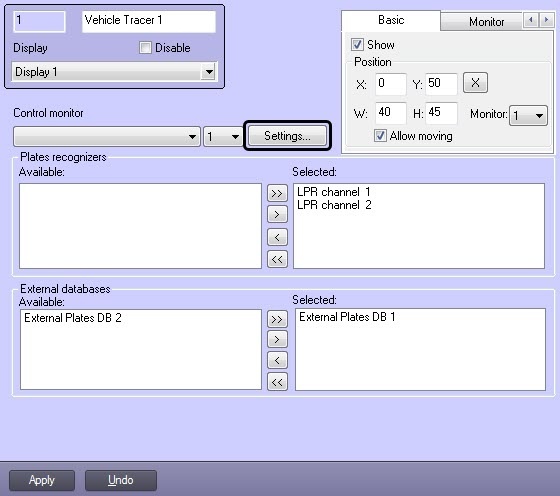

  1. Go to the Vehicle Tracker settings panel.

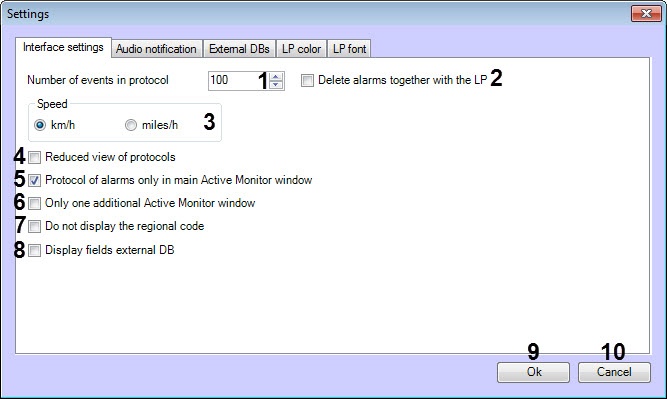

  2. Click the Settings button. The Settings dialog window will open.

  3. In the Number of events in protocol (1) field enter the maximum number of events that may be displayed in every protocol of the Active monitor component. The update of the protocol which contains the maximum number of events, is performed in a loop: when a new event is added, the oldest is deleted.

    That entails two protocols (see Auto-Intellect Software Package: Operator's Guide):

    1. The protocol of identified vehicles, containing data about the identified vehicles;
    2. The alarms protocol, containing data about the vehicles, for which alarms have been registered.


  4. Set the Delete alarms together with the LP (2) check box if it is necessary to delete all the events connected to the last number in the queue when exceeding 33% of total events in the protocol.

    For instance, if the Number of events in protocol is specified as 100 by default, the 34th alarm number will be deleted from the protocol.


  5. Set the Speed (3) switch to the position, corresponding to the Vehicle's speed unit of measurement. That is to be displayed in the Vehicle Tracker window (km/h or miles/h).
  6. By default, in the Active monitor events protocol the following data for every vehicle is displayed:
    1. Video frame;
    2. Identified LP number;
    3. Speed;
    4. Name of LP recognizer;
    5. Date and time of receiving the data;
    6. Reason of alarm (only for alarms).
      In case only the identified LP number, name of LP recognizer, and date and time of receiving the data should be displayed for each event in the Active monitor events protocol, check the Reduced view of protocols (4) checkbox.
  7. You can create additional Active monitor components (see The Auto-Intellect Software Package: Operator's Guide). If the alarms protocol should be displayed only in the main interface component of Active monitor and not in the additional ones, check the Protocol of alarms only in main Active Monitor window (5) checkbox.
  8. By default, the number of additional Active monitor components to be displayed is not restricted. If only the most recent additional Active monitor component should be displayed, check the Only one additional Active Monitor window (6) checkbox.
  9. Set the Do not display regional code (7) check box if it is necessary to hide the Regional code field from the Active Monitor component.

  10. Set the Display the fields of an external DB (8) check box if it is necessary to display the fields of an external DB in the Active Monitor component when the license plate is found in the external license plate database (see Assigning names to table's columns containing vehicle plates).

  11. Click OK (9) to save the changes and close the Settings dialog window.

    Click Cancel (10) to close the Settings dialog window without saving the changes.

    The interface settings of the Vehicle Tracker window are completed.
