The Face counter report (detailed by detectors) allows getting the data about the number of captured faces (people/persons) using the data from the face detectors. The data can be presented only as a table.

To create the Face counter report (detailed by detectors), do the following:

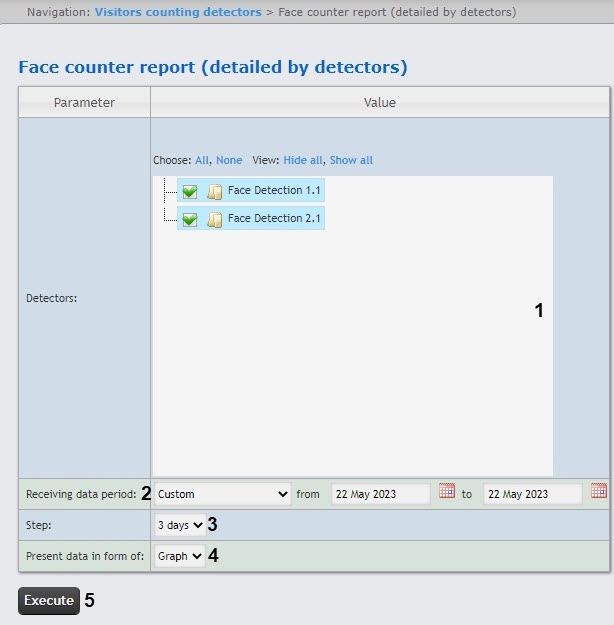

1. Select the Face counter report (detailed by detectors) (see Selecting a type of reports by Visitors counting detectors). As a result the dialog box for specifying the report parameters will be displayed.


2. In the Detectors field, set checkboxes for those Face Detection objects, the information on which should be displayed in the report (1).

3. From the Receiving data period drop-down list (2), select the time period for which the report should be created. If the Custom period is selected, enter the date of start and end periods for which the report should be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.
4. In the Step field (3), enter the time period, during which the data recieved from the face recognition server will be summarized. The list of the available intervals depends on the selected period (2).
5. In the Present data in form of field (4), select the form in which the data will be presented in the report: Table or Graph
6. To create a report click Execute (5).

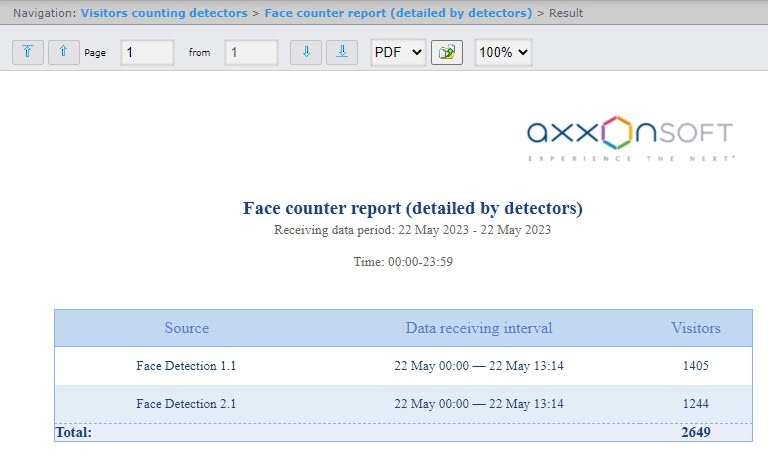

Example of the Face counter report (detailed by detectors) as a table is given in the following figure.

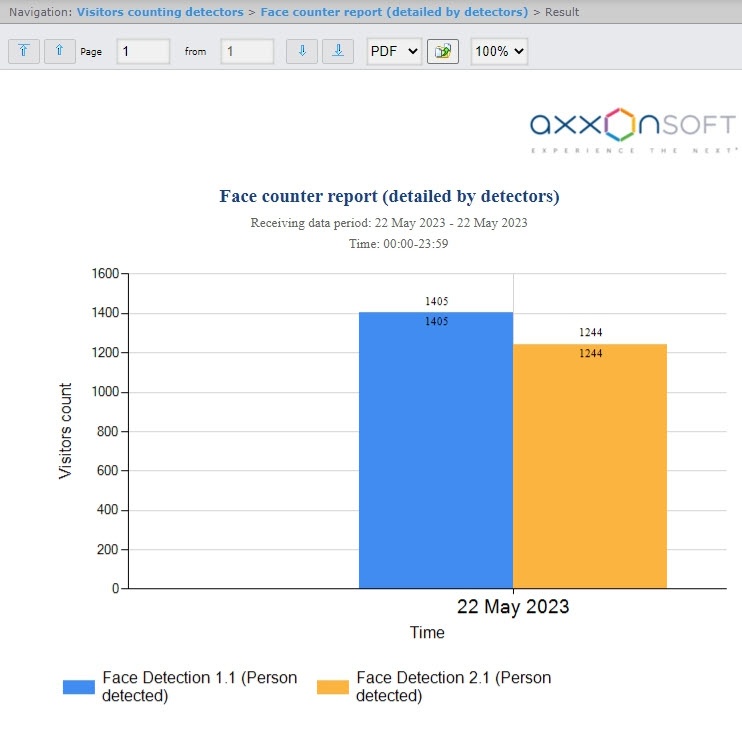

Example of the Face counter report (detailed by detectors) as a graph is given in the following figure.

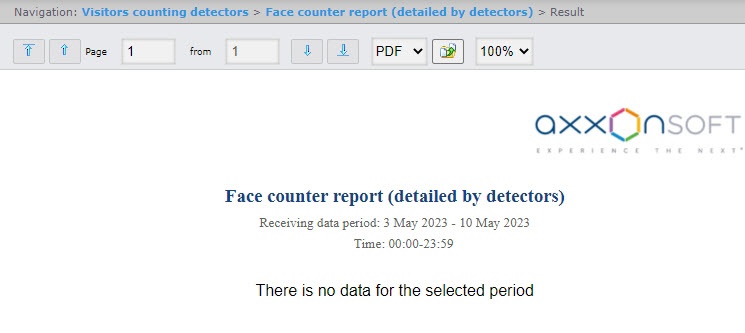

If there is no data for specified time period, the report will be displayed as in the following figure.
