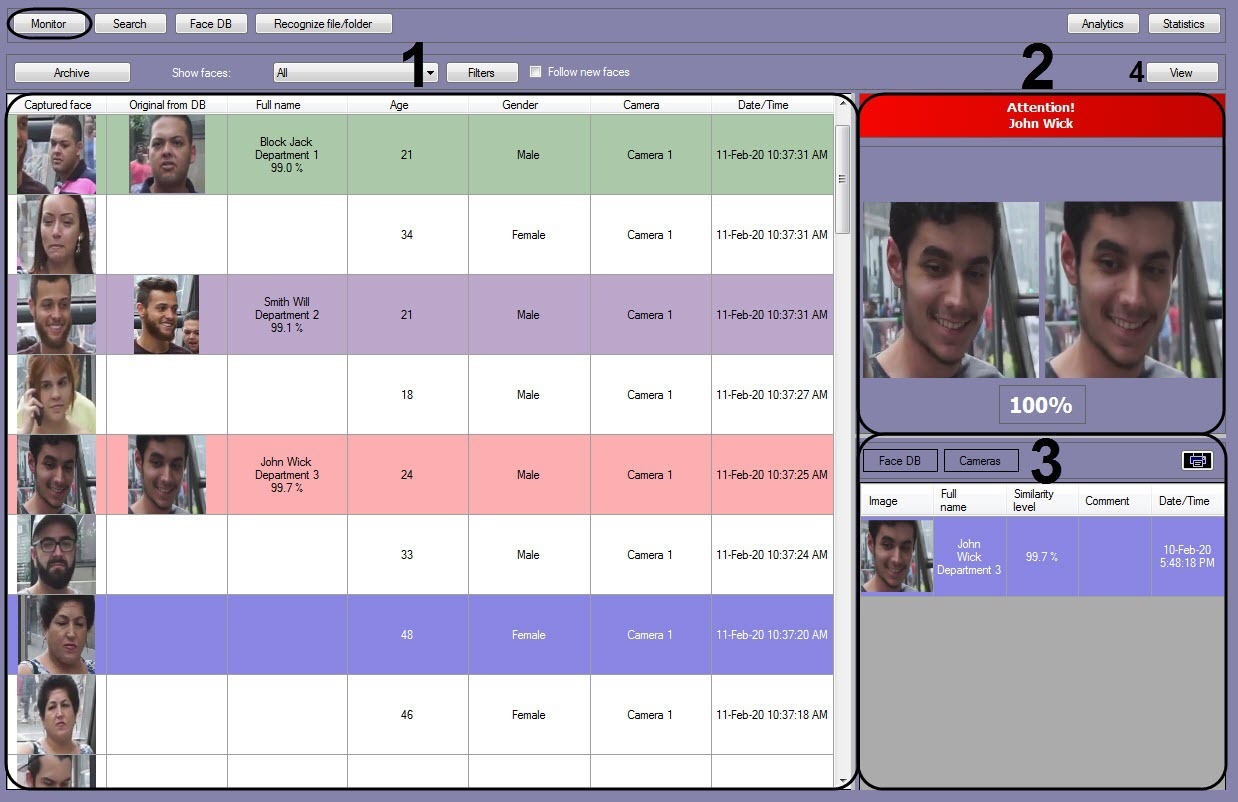

To go to the monitoring mode of captured and recognized faces click the Monitor button in the Face recognition and search interface window.

The following information is displayed in the information field of each captured face (1):

The color of the information field of the recognized face may indicate the following:

• The level of similarity of captured face with the most corresponding face from the face recognition database. The conditional thresholds of similarity levels are set when configuring the Face recognition and search interface module (see Configuring the color highlighting by face similarity).
• The face belongs to a department for which an arbitrary color is set (see Setting color highlighting of faces that belong to selected departments).

If the Follow new faces checkbox is set, the list of faces is scrolled up to the top when a new face is captured even if some face is selected in it. To disable automatic list scrolling, unset the Follow new faces checkbox. You can also double-click the captured face to unset this checkbox. In this case the list is not scrolled up when new faces are captured.

If the captured face was recognized, then in the upper right part of the captured faces monitoring panel (2), an alarm window is displayed with the following information:

• The title of the alarm window;

  The alarm window color and title can be changed (see Alarm window title setting).




• Full name of recognized person;

• The image with the captured face and the corresponding image from the face recognition database;

  If the Face Recognition Server works with a thermal camera (see Configuring the Face Recognition Server operation with thermal camera), the image will also display the face temperature in degrees Celsius.




• The similarity level as a percentage.

The lower right part of the captured faces monitoring panel (3) displays the following information:

• The Face DB section displays the information on the recognized face and contains the following information:

  Column name	Description	Face Recognition module used
  Image	The recognized face image Note. As you increase the width and height of this column, the image size also increases. The specified column size does not change even if the Columns auto width checkbox is set (see Configuring permissions and additional settings)	All recognition modules
  Full name	The full name of the recognized person	All recognition modules
  Similarity level	The similarity level between the recognized face and the face image	All recognition modules
  Comment	The comment	All modules except HUAWEI
  Date/Time	The date and time of the search	All recognition modules
  ID	The recognized face ID	Only HUAWEI




• The Cameras section displays the 10 recently captured faces that are similar to the selected face filtered by the specified filtering conditions (see Filtering recognized and unrecognized persons). The field contains the following information:

  Column name	Description	Face Recognition module used
  Image	The captured face image Note 1. If the Face Recognition Server works with a thermal camera (see Configuring the Face Recognition Server operation with thermal camera), the image will also display the face temperature in degrees Celsius.	All recognition modules
  Similarity level	The similarity level between the captured face and the selected face	All recognition modules
  Camera	The camera that captured the face	All recognition modules
  Date/Time	The date and time of the search	All recognition modules
