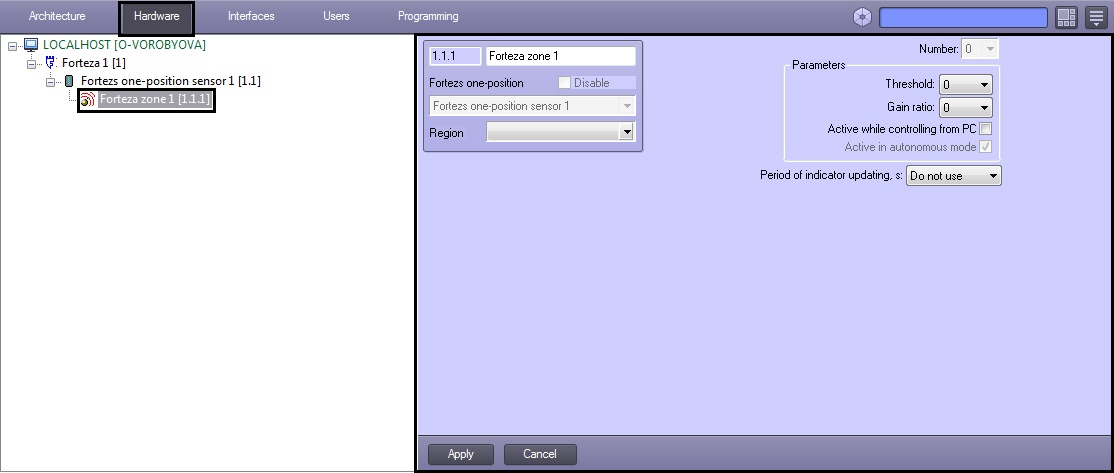

In ACFA PSIM the area of the Forteza one-position sensor is configured on the settings panel of the Forteza zone object. This object is created under the Forteza one-position object in the Hardware tab of the System settings dialog box.

Forteza one-position sensor supports 12 areas.

Configure area of Forteza one-position sensor as follows:

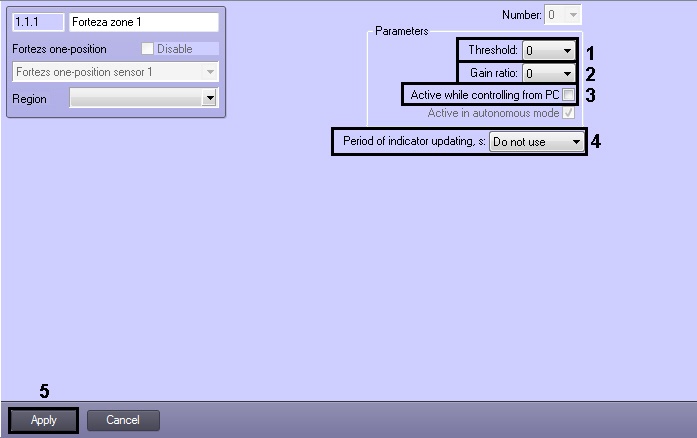

  1. Go to the settings panel of the Forteza zone object.
  2. From the Threshold: drop-down list select value of sensibility threshold (1).
    The minimum sensitivity of the sensor corresponds to the maximum value of the Threshold parameter, i.e. the bigger the value of this parameter, it is more probable that alarm event will be skipped.
  3. From the Gain ratio: drop-down list select value of area sensor signal gain (2).
  4. If it's required to receive events from the area while controlling from PC set the corresponding checkbox (3).
  5. Specify the period of indicator updating in seconds (4). Select the Do not use value if updating is not required.
  6. To save changes click the Apply button (5).

Area of Forteza one-position sensor is configured.
