The procedures for specifying the minimum and maximum size of a moving object are identical.

You can specify the minimum (or maximum) size of a moving object using any of the following methods:

The first method lets you roughly configure the size, and the second method allows you to set the size precisely.

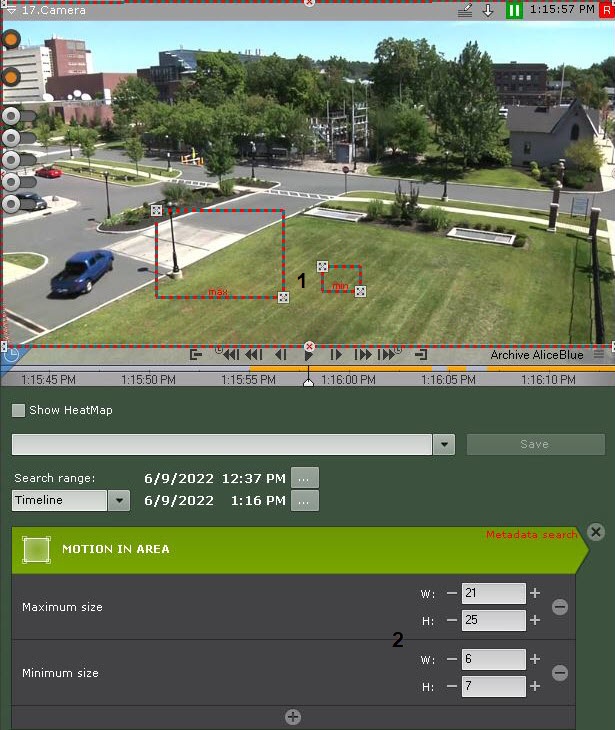

  1. Hover the cursor over an anchor point of a visual element and, holding down the left mouse button, move the mouse (1).
  2. Specify the width and height of an object of the minimum (maximum) size using the +/- buttons (2). The dimensions of a visual element in the Surveillance window change accordingly.

The minimum (maximum) size of an object is configured.
