The BACnet object corresponds to the BACnet device channel. It is created automatically during the devices search (see Activation of the BACnet Wrapper module and the BACnet devices search).

To add a BACnet object manually or to configure a BACnet object, do the following:

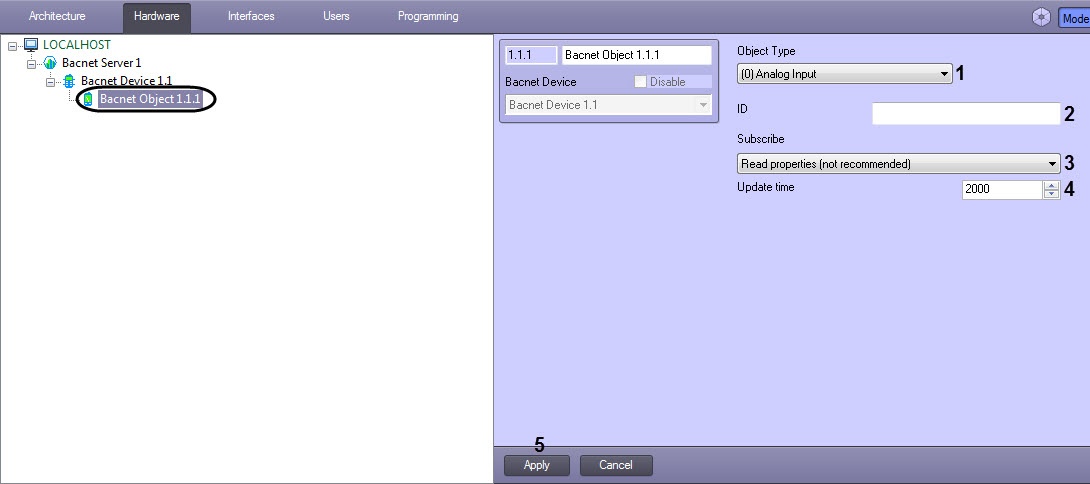

1. Go to the Bacnet Object object settings panel, which is created on the basis of the Bacnet Device object.

2. In the Object Type drop-down list (1) select one of the channel types.
3. In the ID field (2) enter the identification number of the channel.
4. In the Subscribe drop-down list (3), select the method for monitoring the changes in the BACnet object values:
   1. None - No subscription. The object parameters changes are not monitored.
   2. Normal - Standard subscription type. When the object's parameter changes, the value is immediately sent to the BACnet Wrapper integration module.

   3. Read properties (not recommended) - Parameters reading at a specified time interval. If this subscription method is selected, the Update time field (4) becomes available. Enter the time period in milliseconds for reading the parameters of the BACnet object in this field.

      Select the Read properties (not recommended) subscription method only if the standard subscription method does not work.




Configuring the BACnet object is complete.
