The Gender analytics report allows you to receive the data on gender analytics from Face-Intellect for a certain time period. The data is displayed in graph.

To build the Gender analytics report, do the following:

1. Select the Gender analytics report (see Selecting a type of reports by People Counter detector). As a result the dialog box for specifying the report parameters will be displayed.

2. Set the report parameters in the following way:

   1. In the Face Recognition Server field (1), set the checkboxes for those Face Recognition Server and Camera objects, the information from which should be displayed in the report.

   2. From the Step drop-down list (2), select the time period within which the data for the report will be summarized.

   3. From the Select the group type drop-down list (3), select the type of data grouping: By gender or By age.

      If the By gender grouping type is selected, the report will also contain data on the face emotions.




   4. From the Receiving data period drop-down list (4), select the time period for which you want to build a report.

      If the Custom 2 period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields (5) using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool. Enter the start and end time of the period using the  button.




3. To create a report, click Execute (5). As a result, the report with specified parameters is displayed.
   The report example of the By gender grouping type:

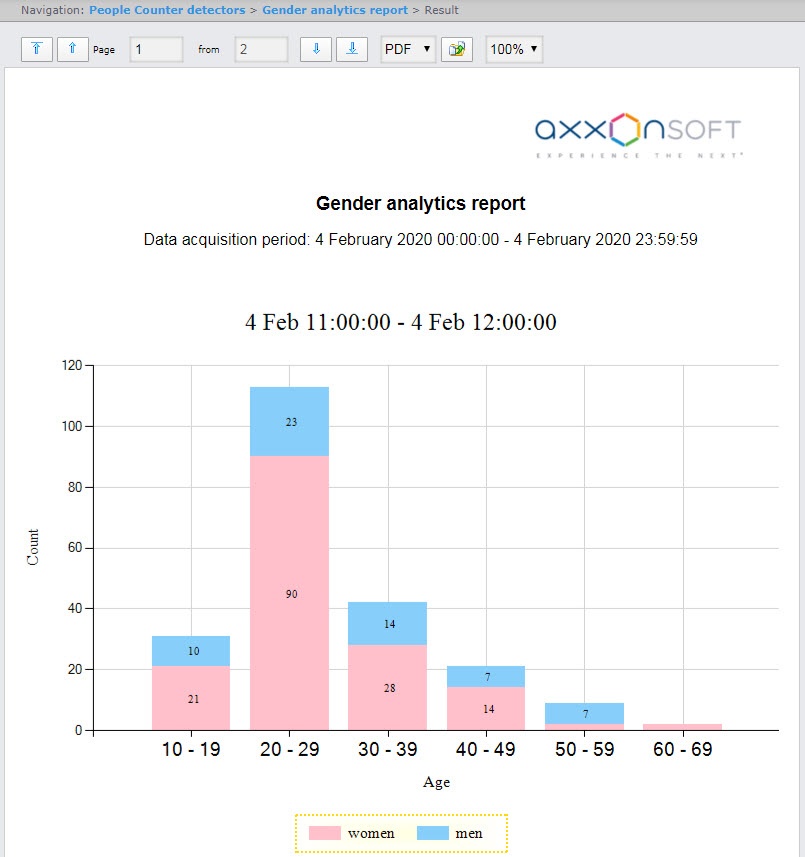

The report example of the By age grouping type:
