In the video surveillance window, on the layout, you can display the detection tool icon and the number of objects in the detection area. The number of detected objects can be displayed for the neural counter, people counter and water level detection tools. Configure the display of the number of detected objects as follows:
- Go to layout editing mode with the selected video camera (see Switching to layout editing mode).
- Move the detection tool icon to an arbitrary location in the cell.
- If it is necessary to adjust the font, click the
button. - To add text, click on the gray area.
- In an arbitrary place in the gray area, specify a template for displaying the number of objects in curly brackets:
- {0}—integer;
- {0.0}—fractional number with 1 digit after the point;
- The template expands to {0.0000} to display the number with 4 digits after the point. If the user text contains more digits after the point than received from the detection tool, the missing low-order digits are filled with zeros.
If a template for displaying the number of objects is not added, then the number can be displayed as an integer or a fraction (with an accuracy of no more than 4 digits after the point). |
- If it is necessary to scale up/down the text and the sensor icon, click the
button. - Save the layout (see Exiting Layout Editing mode).
After saving the layout, the detection tool icon and the number of objects will be displayed in the video surveillance window.

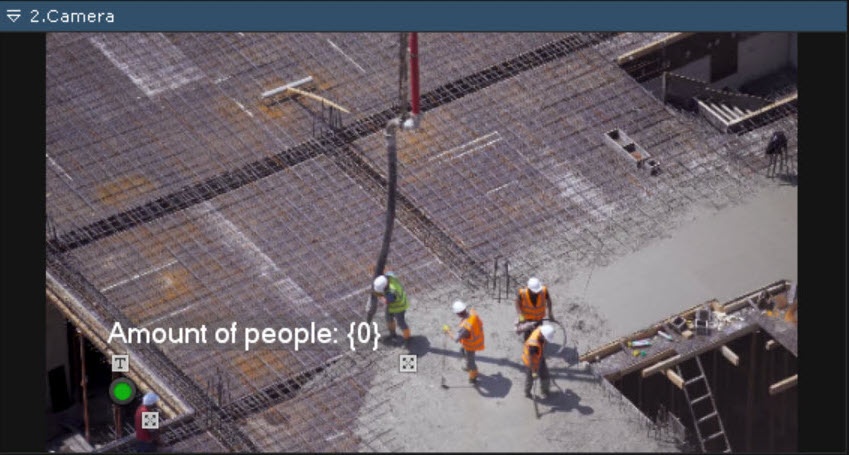

An example of setting up the display of the number of objects in the detection zone based on a people counter:
