The ONVIF-Server Profile object is used to configure the ONVIF device channel.

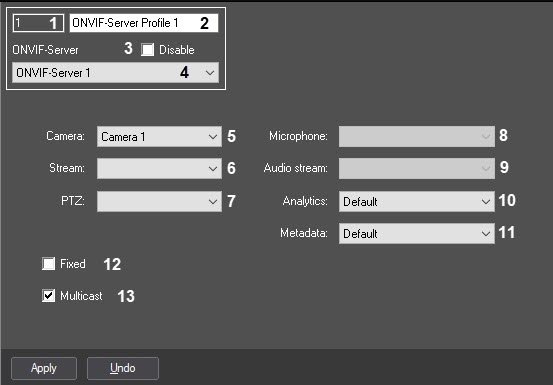

The settings panel of the ONVIF-Server Profile object is shown in the figure.
The table describes the setting parameters of the ONVIF-Server Profile object.
| № | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
| 1 | The Identification number* field | Automatically | Displays the identification number of the ONVIF-Server Profile object in the video surveillance system with distributed architecture | Digits, letters, periods, hyphen, dash, and underscore | NA | Depends on the number of the ONVIF-Server Profile objects in the video surveillance system with distributed architecture |
| 2 | The Name* field | Enter the value in the field | Sets the name of the ONVIF-Server Profile object in the video surveillance system with distributed architecture | Latin alphabet, Cyrillic, and service characters | PTZ device | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
| 3 | The Disable | Set the checkbox | Disables the ONVIF-Server Profile object in the video surveillance system with distributed architecture | Boolean type | Clear | Set—the ONVIF-Server Profile object is disabled and isn't used Clear—the ONVIF-Server Profile object is enabled and used |
| 4 | The ONVIF-Server drop-down list | Select the value from the list | Sets the ONVIF-Server parent object in the system with distributed architecture to which the given ONVIF-Server Profile object belongs | Names of the ONVIF-Server objects registered in the system | ONVIF-Server | Depends on the number of the ONVIF-Server objects in the video surveillance system with distributed architecture |
| 5 | The Camera drop-down list | Select the value from the list | Sets the Camera object to which the given ONVIF-Server Profile object corresponds | Names of the Camera objects registered in the system | NA | Depends on the number of the Camera objects in the video surveillance system with distributed architecture |
| 6 | The Stream drop-down list | Select the value from the list | Sets the camera stream that is transmitted via the given ONVIF-Server Profile object | List of available camera streams | NA | Depends on the number of the activated camera streams |
| 7 | The PTZ drop-down list | Select the value from the list | Sets the PTZ object, used for the PTZ control of the camera, corresponding to the ONVIF-Server Profile object | List of PTZ objects corresponding to the selected Camera object | NA | Depends on the number of the PTZ objects created and configured in the system |
| 8 | The Microphone drop-down list | Select the value from the list | Sets the Microphone object corresponding to the selected Camera object | List of the Microphone objects corresponding to the selected Camera object | NA | Depends on the number of the Microphone objects created and configured in the system |
| 9 | The Audio stream drop-down list | Select the value from the list | Sets the audio stream to be synchronously transmitted with video signal | List of available audio streams | NA | Depends on the number of the available audio streams |
| 10 | The Analytics drop-down list | Select the value from the list | Sets the stream to transmit data analytics | List of available streams | NA | Depends on the number of available streams |
| 11 | The Metadata drop-down list | Select the value from the list | Sets the stream to transmit metadata | List of available streams | NA | Depends on the number of available streams |
| 12 | The Fixed checkbox | Set the checkbox | Disables deleting the ONVIF-Server Profile object using the driver | Boolean type | Clear | Set—the ONVIF-Server Profile object cannot be deleted using the driver Clear—the ONVIF-Server Profile object can be deleted using the driver |
| 13 | The Multicast checkbox | Set the checkbox | Enables video transmission via the ONVIF-Server in the Multicast mode | Boolean type | Clear | Set—video can be transmitted in the Multicast mode. Note. There are some extra actions needed besides setting the checkbox in order to enable video transmission in the Multicast mode—see Configuring getting video using ONVIF-Server module Clear—video cannot be transmitted in the Multicast mode |
*Name of the element isn't displayed in the settings panel of the given object
