General information

When working with lists of faces, you can configure a macro to start (see General information about macros), when:

• the recognized face is present in the selected list;
• the recognized face is absent in the selected list;
• it is necessary to recognize the presence of the specific face in a list;
• the recognized face is absent in all created lists.

Presence of the recognized face in the selected list of faces

To configure a macro that starts when the recognized face is present in the selected list of faces, do the following:

1. Go to the Programming tab.
2. In the Event rules list, click Create....
3. In the start conditions, select the required camera → the Face recognition event → required list of faces.

4. Select the Presence option.
5. Click the button and select the action that will be performed when an event from the start conditions occurs (see Settings specific to actions).
6. Click the Apply button.

Configuration of a macro that starts when the recognized face is present in the selected list of faces is complete.

Absence of the recognized face in the selected list of faces

To configure a macro that starts when the recognized face is absent in the selected list of faces, do the following:

1. Go to the Programming tab.
2. In the Event rules list, click Create....
3. In the start conditions, select the required camera → the Face recognition event → required list of faces.

4. Select the Absence option.
5. Click the button and select the action that will be performed when an event from the start conditions occurs (see Settings specific to actions).
6. Click the Apply button.

Configuration of a macro that starts when the recognized face is absent in the selected list of faces is complete.

Recognition of the presence of a specific face in the list of faces

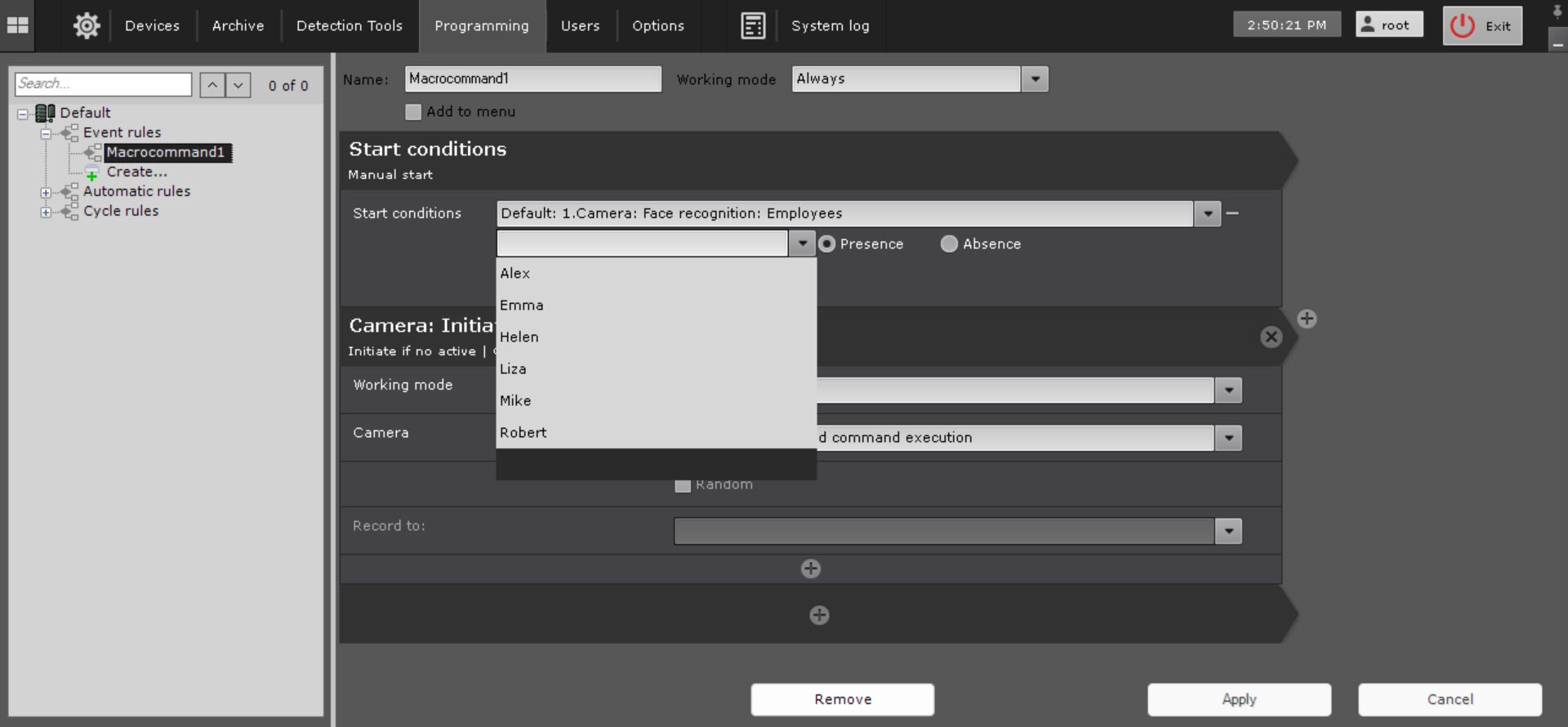

To configure a macro that starts when a specific face is present in the list of faces, do the following:

1. Go to the Programming tab.
2. In the Event rules list, click Create....
3. In the start conditions, select the required camera → the Face recognition event → required list of faces.

4. Select the Presence option.
5. Select the required person from the drop-down list.

   To select another person, clear the field and re-open the list.

6. Click the button and select the action that will be performed when an event from the start conditions occurs (see Settings specific to actions).
7. Click the Apply button.

Configuration of a macro that starts when a specific face is present in the list of faces is complete.

Absence of the recognized face in all created lists of faces

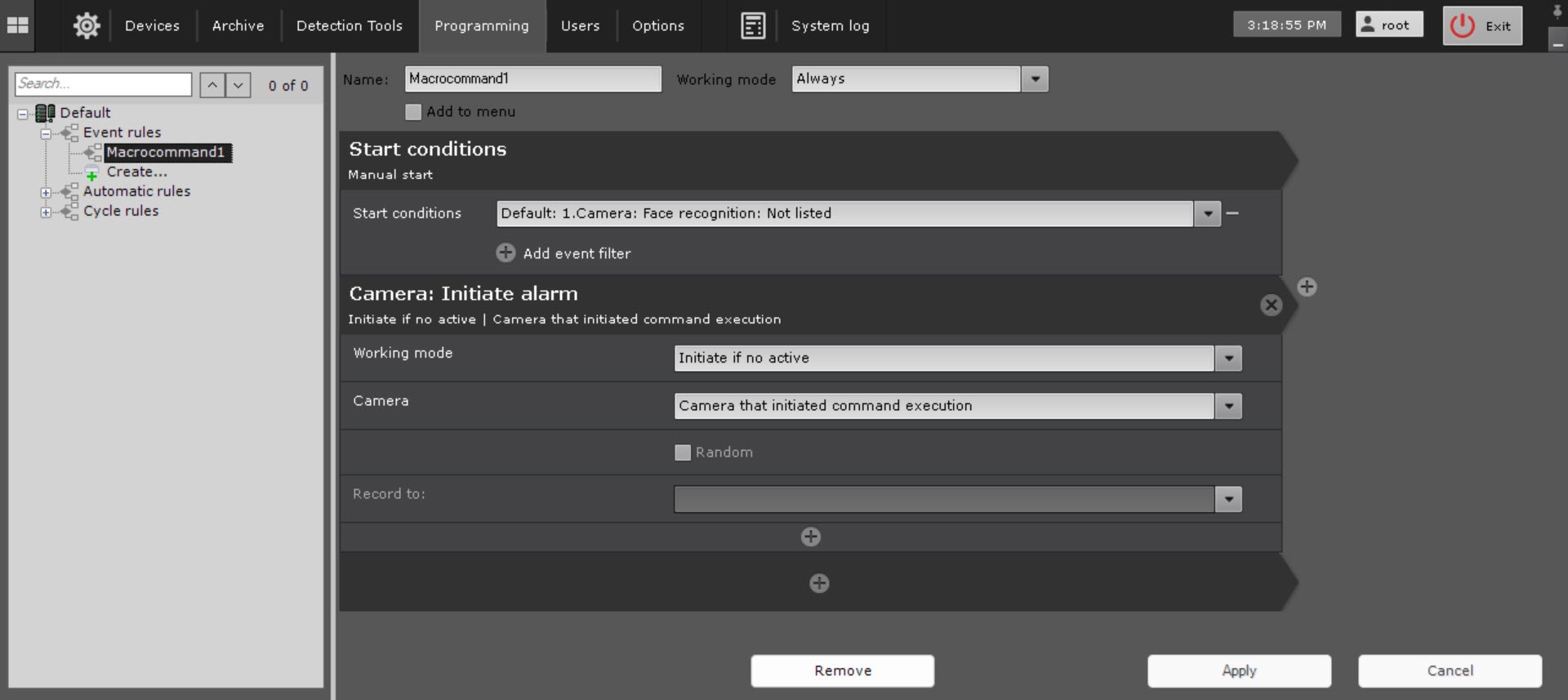

To configure a macro that starts when the recognized face is absent in all created lists of faces, do the following:

1. Go to the Programming tab.
2. In the Event rules list, click Create....
3. In the start conditions, select the required camera → the Face recognition event → Not listed.

4. Click the button and select the action that will be performed when an event from the start conditions occurs (see Settings specific to actions).
5. Click the Apply button.

Configuration of a macro that starts when the recognized face is absent in all created lists of faces is complete.
