The settings panel of the SIP-device object

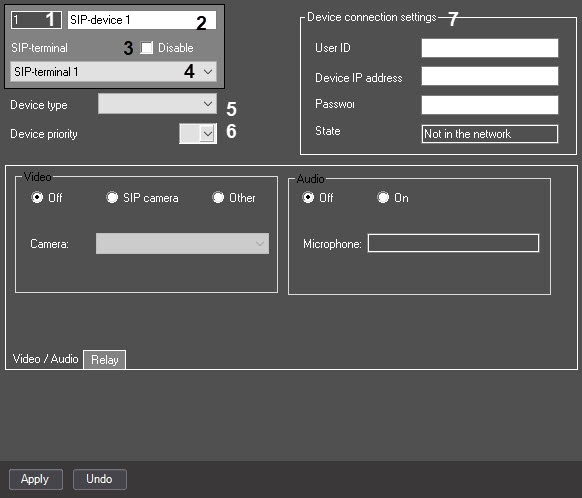

The settings panel of the SIP-device system object is shown in the figures below.

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Identification number* field	Automatically	Displays the identification number of the SIP-device system object in the system	Digits, letters, periods, hyphen, dash, and underscore	NA	Depends on the number of the SIP-device objects in the system
2	The Name* field	Enter the value in the field	Sets the name of the SIP-device object system	Latin alphabet, Cyrillic, digits and service characters	SIP-device	A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60
3	The Disable checkbox	Set the checkbox	Disables the SIP-device object in the system	Boolean type	Clear	Set—the SIP-device object is disabled and isn't used Clear—the SIP-device object is enabled and used
4	The SIP-terminal drop-down list	Select the value from the list	Sets the SIP-terminal parent object for the given SIP-device object	Names of the SIP-terminal objects registered in the system	Name of the SIP-terminal parent object	Depends on the number of the SIP-terminal objects in the system
5	The Device type drop-down list	Select the value from the list	Sets the icon type to display the device on the map	Names of the available icon types	Empty line	Empty line (no value); touch panel; speaker; camera; microphone; default
6	The Device priority drop-down list	Select the value from the list	Sets the priority of a call from this device in the incoming calls window of the SIP panel	Sequence of numbers	Empty line	From 1 to 10. The lower the number, the higher the priority and, accordingly, the higher the display in the list; If the field is left blank, then the priority is considered to be minimal; Calls from devices with the same priority are sorted by the time of the call
The Device connection settings group
7	The User ID field	Enter the value in the field	Sets the SIP device identification number, that is, the number to call it	Integer numbers	NA	>=0
	The Device IP address field	Enter the value in the field	Enters the SIP device IP address. For the SIP-server terminal type only	IP address	NA	From 1.0.0.0 to 255.255.255.255
	The Password field	Enter the value in the field	Sets the password to connect to the SIP device. For the SIP-server terminal type only	Latin alphabet, Cyrillic, digits and service characters	NA	A line containing a sequence of any characters (letters, digits, service characters)
	The State field	Automatically	Displays the SIP device state. For the SIP-server terminal type only	NA	NA	NA

*Name of the element isn't displayed in the settings panel of the given object

The Video/Audio tab (only for the SIP-server terminal type)

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range

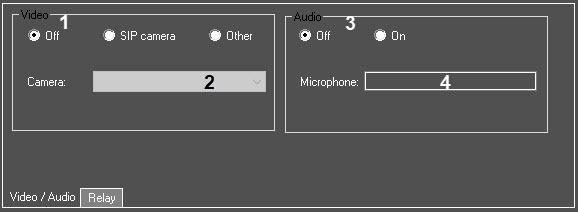

1	The Video switch	Set the switch to the required position	Sets the camera used for calls	Supported options of camera usage	Off	Off—video isn't used during the call; SIP camera—the SIP device camera connected via the SIP protocol is used; Other—any other camera from the Axxon PSIM hardware tree selected from the Camera drop-down list is used
2	The Camera drop-down list	Select the value from the list	Sets any camera used for calls	Names of the Camera objects registered in the system	NA	Depends on the number of the Cameras objects in the system
3	The Audio switch	Set the switch to the required position	Enables the audio during a call	Supported options of audio usage	Off	Off—the audio isn't used during the call On—the microphone of the SIP device is used during the call
4	The Microphone field	Automatically	Displays the name of the Microphone object corresponding to the SIP device	NA	NA	NA

The Relay tab (only for the SIP-server terminal type)

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range

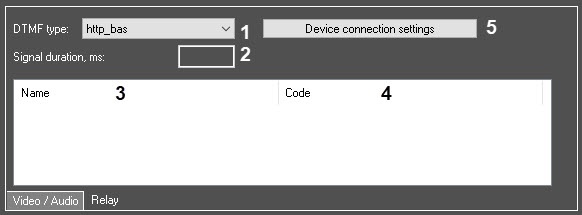

1	The DTMF type drop-down list	Select the value from the list	Sets the type of the tone signal	Supported signal types	sip_info	sip_info—signals are transmitted in the INFO message of the SIP protocol; sip_notify—signals are transmitted in the NOTIFY message of the SIP protocol; in_band—the signal is transmitted as normal sound in the audio stream; http_bas—signals are transmitted via the HTTP protocol separately from the voice stream
2	The Signal duration, ms field	Enter the value in the field	Sets the time period in milliseconds during which the DTMF signal must be sent	Sequence of numbers	NA	>0
3	The Name field	Enter the value in the field	Sets the name of the command that will be displayed on the SIP panel	Latin alphabet, Cyrillic, digits and service characters	NA	A line containing a sequence of any characters (letters, digits, service characters)
4	The Code field	Enter the value in the field	Sets the unique command code	Sequence of numbers or HTTP request (for http_bas)	NA	A line containing a sequence of numbers or HTTP request
5	The Device connection settings field	NA	Opens the Device connection settings pop-up window only when the http_bas type of tone is selected	NA	Inactive by default	NA

The table below describes the fields of the Device connection settings pop-up window.

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Login field	Enter the value in the field	Sets the username to connect to the SIP device (BasIP)	Latin alphabet, Cyrillic, digits and service characters	NA	A line containing a sequence of any characters (letters, digits, service characters)
2	The Password field	Enter the value in the field	Sets the password to connect to the SIP device (BasIP)	Latin alphabet, Cyrillic, digits and service characters	NA	A line containing a sequence of any characters (letters, digits, service characters)
3	The IP address field	Enter the value in the field	Sets the IP address of the SIP device (BasIP)	IP address	NA	From 1.0.0.0 to 255.255.255.255
