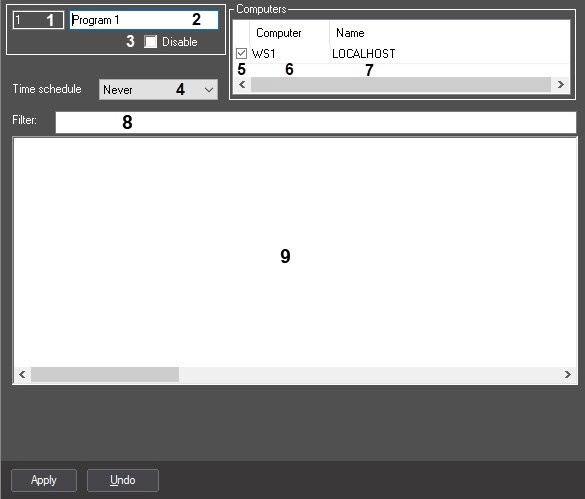

The settings panel of the Program object

№

Parameter

Method for setting the parameter value

Parameter description

Representation

Default value

Value range

1

The Identification number* field

Automatically

Displays the identification number of the Program object in the video surveillance system

Digits, letters, periods, hyphen, dash, and underscore

NA

A line containing digits, letters, periods, hyphen, dash, and underscores.

Depends on the number of the Program objects in the video surveillance system with distributed architecture

2

The Name* field

Enter the value in the field

Sets the name of the Program object

Latin alphabet, Cyrillic, digits and service characters

Program

A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive.

Number of characters—from 1 to 60

3

The Disable checkbox

Set the checkbox

Disables the Program object

Boolean type

Clear

Set—the Program object is disabled and isn't used

Clear—the Program object is enabled and used

4

The Time schedule
drop-down list

Select the value from the list

Sets the time period during which the given program operates

Name of the time schedule registered in the system

Never

• Never—this program isn't executed;
• Always—this program is always executed;
• List of the created time schedules—the program is executed within the time period specified in the time schedule

5

The Select an element checkbox

Set the checkbox

Sets the computer on which the given program is executed

Boolean type

Clear

Set—the program is executed on the specified computer

Clear—the program isn't executed on the specified computer

6

The Computer field

Automatically

Sets the computer in the local network

Computer names in the local network

Computer name in the local network

A line containing a sequence of any characters (letters, digits, service characters), case-insensitive.

Number of characters—60

7

The Name field

Automatically

Sets the name of the computer

Names of the Computer object registered in the system

Name of the Computer object registered in the system

A line containing a sequence of any characters (letters, digits, service characters), case-insensitive.

Number of characters—60

8

The Filter field

Enter the value in the field

Sets to pre-filter events processed by the program

Latin alphabet, Cyrillic, digits and service characters

NA

A line containing a sequence of any characters (Latin letters, digits, service characters), case-insensitive.

Number of characters—unlimited.

The filter format is TYPE|ID|EVENT divided by semicolon. For example, the CAM||MD_STOP;CAM||MD_START format filters Alarm and Alarm end events from all Camera objects

9

The Text editor field

Enter the value in the field

Enters the text of the executed program

Latin alphabet, Cyrillic, digits and service characters

NA

A line containing a sequence of any characters (Latin letters, digits, service characters), case-insensitive.

Number of characters—unlimited
