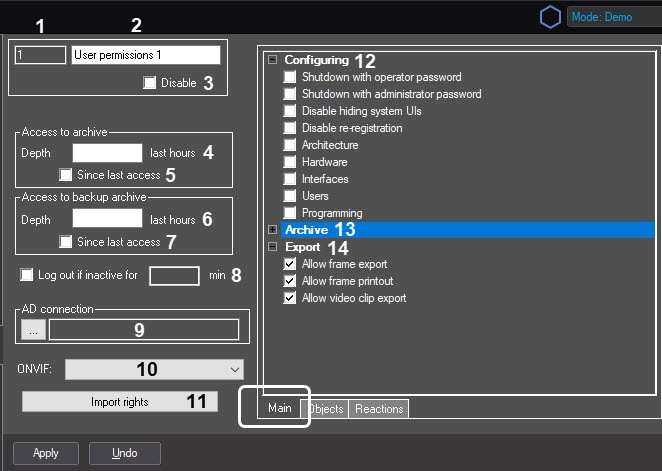

The settings panel of the User permissions system object is shown in the figure.
The Main tab
The table describes the setting parameters of the User permissions system object.
№ | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | The Identification number* | Automatically | Displays the identification number of the User permissions system object in the system | Digits, letters, periods, hyphen, dash, and underscore | NA | A line containing a sequence of numbers, letters, periods, hyphens, dash, and underscores. Depends on the number of the User permissions objects in the system |
2 | The Name* | Enter the value in the field | Sets the name of the User permissions object in the system | Latin alphabet, Cyrillic, digits, and service characters | User permissions | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
3 | The Disable | Set the checkbox | Disables the User permissions object in the system | Boolean type | Clear | Set—the User permissions object is disabled and isn't used Clear—the User permissions object is enabled and used |
The Access to archive group | ||||||
4 | The Depth __ last hours | Enter the value in the field | Sets the number of the last hours of the video archive that can be viewed | Non-negative integer | NA | >=0 The 0 value means that you aren't allowed to view the archive |
5 | The Since last access | Set the checkbox | Sets the time to determine the archive depth | Boolean type | Clear | Set—the number of hours available for viewing are counted from the moment the user logged in Clear—the number of hours available for viewing are counted from the current moment |
The Access to backup archive group | ||||||
6 | The Depth __ last hours | Enter the value in the field | Sets the number of the last hours of the backup archive that can be viewed | Non-negative integer | NA | >=0 The 0 value means that you aren't allowed to view the backup archive |
7 | The Since last access | Set the checkbox | Sets the time to determine the backup archive depth | Boolean type | Clear | Set—the number of hours available for viewing are counted from the moment the user logged in Clear—the number of hours available for viewing are counted from the current moment |
Out of the group | ||||||
8 | The Log out if inactive for __ minutes | Set the checkbox | Enables the automatic system shutdown if the operator is inactive during the specified period of time | Boolean type, integer number | Clear | Set—when the operator is inactive for the specified time period, the session is automatically terminated. To continue operation, log in the system, specifying the username and password Clear—session isn't automatically terminated when the operator is inactive |
The Log out if inactive for __ minutes | Enter the value in the field | Sets the period of operator inactivity in minutes after which you must log out the system | Non-negative integer | Inactive | >=0 | |
9 | The AD connection | Click the button | Opens the window to configure the connection between user permissions and Windows Active Directory groups | NA | NA | NA |
The AD connection | Automatically | Displays the ID of the Active Directory user bound to the Axxon PSIM user | Latin alphabet and service characters | NA | Depends on the ID values in Active Directory | |
10 | The ONVIF | Select the value from the list | Matches the Axxon PSIM user rights with ONVIF rights according to the specification | Supported types of rights | NA |
|
11 | The Import rights | Click the button | Imports the settings of the user rights from other User permissions objects | NA | NA | NA |
| The Main tab | ||||||
The Configuring group | ||||||
12 | The Shutdown with operator password | Set the checkbox | Allows shutting down Axxon PSIM using the password of the currently authorized operator | Boolean type | Clear | Set—operator with these rights can shut down Axxon PSIM Clear—operator with these rights is forbidden to shut down Axxon PSIM |
The Shutdown with administrator password | Set the checkbox | Allows shutting down Axxon PSIM using the password of the administrator | Boolean type | Clear | Set—Axxon PSIM shuts down only when the administrator password is used Clear—you can shut down Axxon PSIM in other ways | |
The Disable hiding system UIs | Set the checkbox | Allows hiding windows in Axxon PSIM | Boolean type | Clear | Set—hiding interface windows is forbidden Clear—hiding interface windows is allowed | |
The Disable re-registration | Set the checkbox | Allows changing the user in Axxon PSIM | Boolean type | Clear | Set—user cannot be changed Clear—user can be changed | |
The group of Tabs* checkboxes | Set the checkbox | Specifies the tabs of the System settings window to which the access is allowed if the user is assigned these rights | Boolean type | Clear | The following values are available for each tab: Set—operator is allowed to manage objects located on the tab Clear—operator is forbidden to access the tab | |
| The Archive group | ||||||
13 | The Allow removing video archive files | Set the checkbox | Removes video archive files from the video surveillance monitor interface | Boolean type | Clear | Set—the Remove item is available in the monitor functional menu Clear— you cannot remove video from the video surveillance monitor interface |
The Allow protecting files from overwriting | Set the checkbox | Allows protecting files from being overwritten | Boolean type | Clear | Set—operator added to these rights can protect archive records from loop recording Clear—operator cannot protect archive records from loop recording | |
The Allow removing file protection | Set the checkbox | Allows removing protection from files that are protected from being overwritten | Boolean type | Clear | Set—operator added to these rights can remove protection from files that are protected from being overwritten Clear—operator cannot remove protection from files that are protected from being overwritten | |
| The Allow viewing hidden archive checkbox | Set the checkbox | Allows viewing the hidden archive | Boolean type | Clear | Set—operator added to these rights can view the hidden archive Clear—operator cannot view the hidden archive | |
| The Allow checking "hidden" archive checkbox | Set the checkbox | Allows hiding the archive | Boolean type | Clear | Set—operator added to these rights can hide the archive Clear—operator cannot hide the archive | |
| The Allow unchecking "hidden" archive checkbox | Set the checkbox | Allows unhiding the archive | Boolean type | Clear | Set—operator added to these rights can unhide the archive Clear—operator cannot unhide the archive | |
| The Allow hiding screen before and after inverted mask checkbox | Set the checkbox | Allows hiding the screen before and after the inverted mask | Boolean type | Clear | Set—operator added to these rights can hide the screen before and after the inverted mask Clear—operator cannot hide the screen before and after the inverted mask | |
| The Allow showing live video after creating inverted mask checkbox | Set the checkbox | Allows viewing live video before and after the inverted mask | Boolean type | Clear | Set—operator added to these rights can view live video before and after the inverted mask Clear—operator cannot view live video before and after the inverted mask | |
| The Allow printing and saving of archive files checkbox | Set the checkbox | Determines the display of print, export, and zoom buttons in the video surveillance monitor in the archive viewing mode | Boolean type | Clear | Set—operator added to these rights can see buttons for printing, zooming, and exporting archive files in the monitor Clear—the buttons for printing, zooming, and exporting archive files are hidden for the operator | |
| The Allow VMDA filters use checkbox | Set the checkbox | Allows saving and loading archive search templates when working with the video surveillance monitor | Boolean type | Clear | Set—operator added to these rights will have access to the Save the template and Load the template menu sub-items of the Search in the archive item in the monitor Clear—the Save the template and Load the template menu sub-items are hidden fo the operator | |
| The Export group | ||||||
14 | The Allow frame export | Set the checkbox | Allows exporting the archive frames | Boolean type | Set | Set—operator added to these rights can export frames Clear—operator cannot export frames |
The Allow frame printout | Set the checkbox | Allows printing archive frames | Boolean type | Set | Set—operator added to these rights can print frames Clear—operator cannot print frames | |
The Allow video clip export | Set the checkbox | Allows exporting video recordings | Boolean type | Set | Set—operator added to these rights can export video recordings Clear—operator cannot export video recordings | |

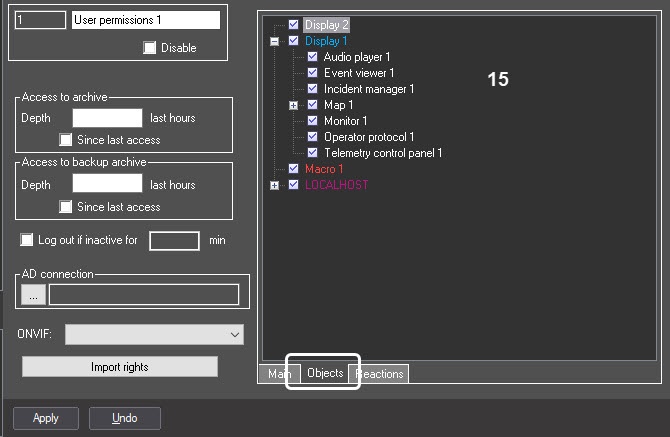

The Objects tab
№ | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
15 | The list of system objects* | Set the checkbox | Displays the objects created in the system and allows setting rights for administration and monitoring | NA | NA | See Limiting access to the system objects administration, control and viewing functions |

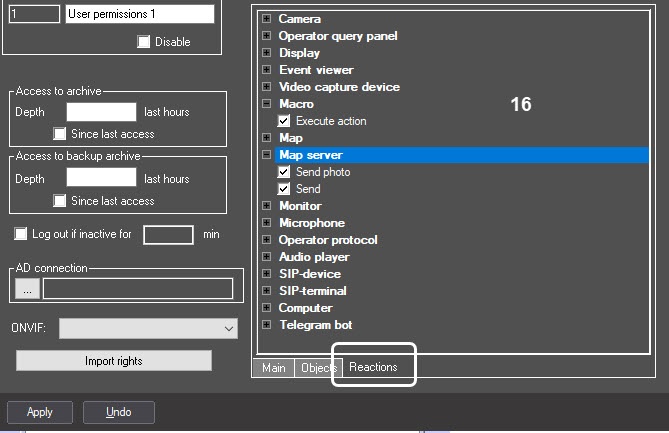

The Reactions tab
№ | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
| 16 | The list of reactions* | Set the checkbox | Sets the list of reactions that the operator can run | Boolean type | Set | Set—operator can run the reaction Clear—operator cannot run the reaction |
* Name of the object isn't displayed on the settings panel
