Table panel of the Current value tab

The following figures show the Table sub-tab of the Current value tab displayed by lane and by direction respectively (depending on the system setup).

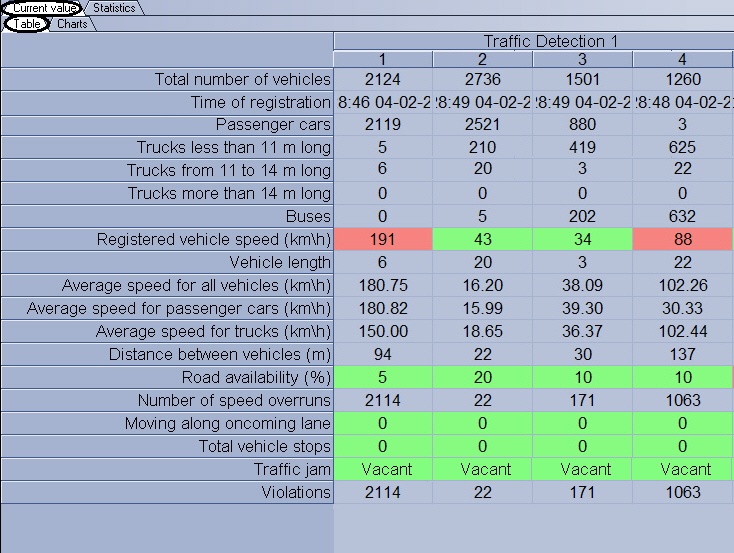

Dispalying by lanes:

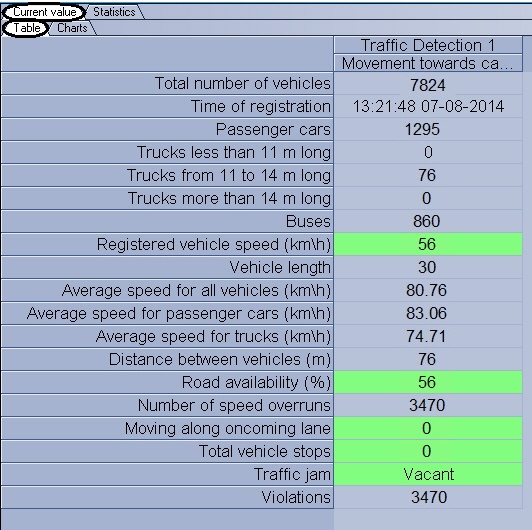

Displaying by direction:

The following table describes the elements of the Table panel.

Field name	Description
Time of registration	The time when the last vehicle passed
Total number of vehicles	Total number of registered vehicles of all types
Passenger cars	The number of registered passenger cars
Trucks less than 11 m long	The number of registered trucks less than 11 m long
Trucks from 11 to 14 m long	The number of registered trucks from 11 to 14 m long
Trucks more than 14 m long	The number of registered trucks more than 14 m long
Buses	The number of registered buses
Registered speed of the vehicle	The speed of the last registered vehicle, km/h
Vehicle length	Total length of the registered vehicle, m
Average speed for all vehicles	Average speed for all registered vehicles, km/h
Average speed for passenger cars	Average speed for passenger car vehicles, km/h
Average speed for trucks	Average speed for registered trucks, km/h
Distance between vehicles	The distance between the last vehicle and the previous one, m
Road load	Average road load, %
Number of speed overruns	The number of speeding violations
Moving along the oncoming lane	The number of moving along the oncoming lane events
Number of vehicle stops	The number of vehicles stopped in the lane
Jam	Traffic jam indicator
Number of incidents	Total number of road rules violations for the lane (direction)
