The Backup archive module can be started in two ways:

  1. Automatically. Due to the schedule of copying on the settings panel of the Backup archive system object.
  2. Manually. With the help of the Backup archive panel interface object.

The process of automatic video archive copying is implemented starting with the latest recordings of video fragments. By default, the automatic copying of video archive is not configured.

To configure the schedule of video archive's copying to the Backup archive, do the following:

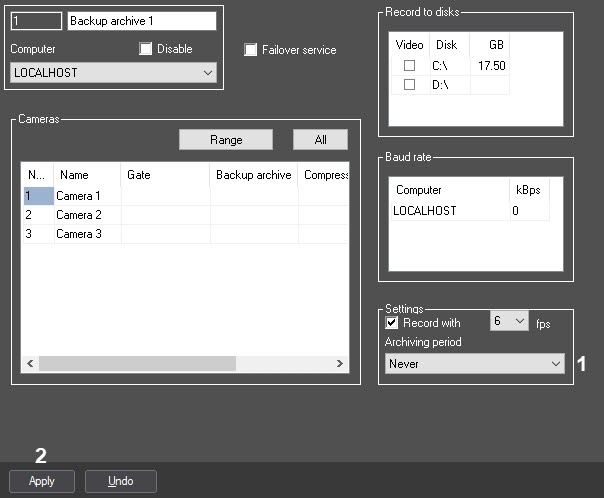

  1. Go to the settings panel for the Backup archive system object.
  2. In the Archiving period drop-down list, select the required time zone (time period) of the Backup archive module start (1).
  3. To save the changes, click the Apply button (2).

The schedule of video archive copying to the Backup archive is now configured.

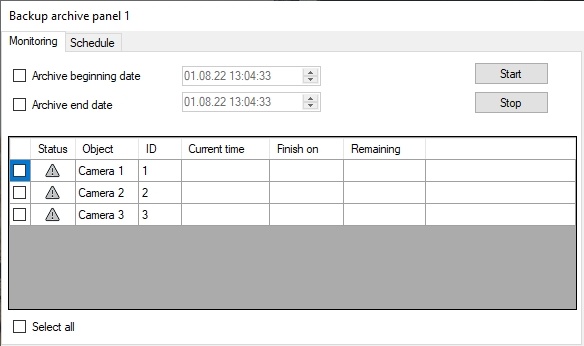

To start the archive backup manually, set the beginning and the ending dates of the archive to be copied and click the Start button.
