Note

Access plan configuration of the Hikvision reader will be illustrated by an example of the Hikvision DS-K26x series controller. You can configure readers of other Hikvision controllers/terminals in the similar way.

To configure the access plan of the Hikvision reader, do the following:

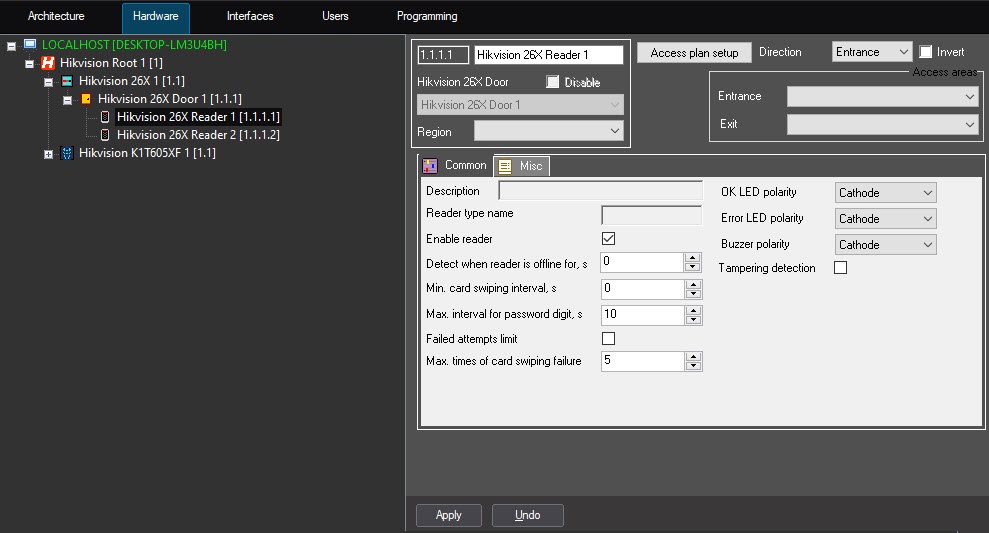

  1. Go to the settings panel of the Hikvision 26X Reader object.

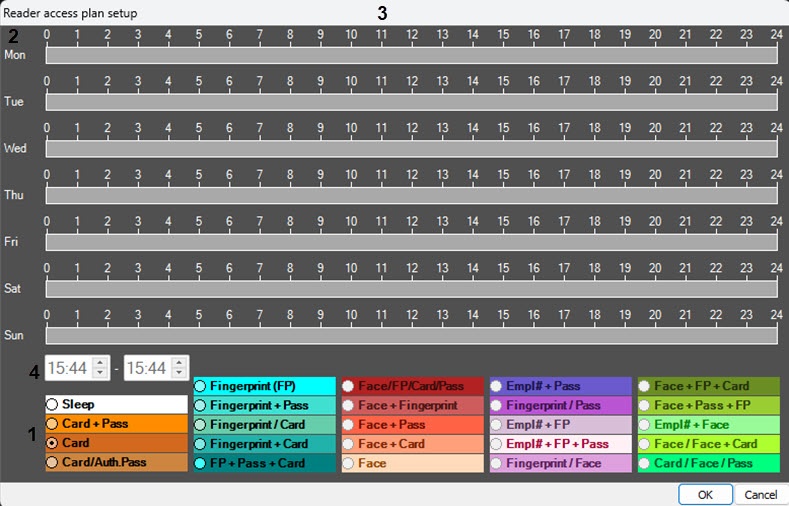

  2. Click the Access plan setup button. The Reader access plan setup window will open.

  3. In the area 1, select the required access type:

    1. Sleep—sleep mode. If you select this mode, the reader won't operate.
    2. Card + Pass—first you need to swipe the card and then enter the password, only then the access will be granted.
    3. Card—you need to swipe the card, after that the access will be granted.
    4. Card/Auth.Pass—you can either swipe the card or enter the password to access.
  4. In the column 2, select the day of the week, and using the mouse, set the time interval for this access type in the corresponding line in the area 3.
  5. If necessary, adjust the time interval in the area 4, where the left field indicates the beginning time, and the right field indicates the ending time of this time interval.
  6. Click the OK button to save the changes and return to the settings panel of the Hikvision reader.
  7. Click the Apply button on the settings panel of the reader.
