To configure the common settings of the Hikvision reader, do the following:

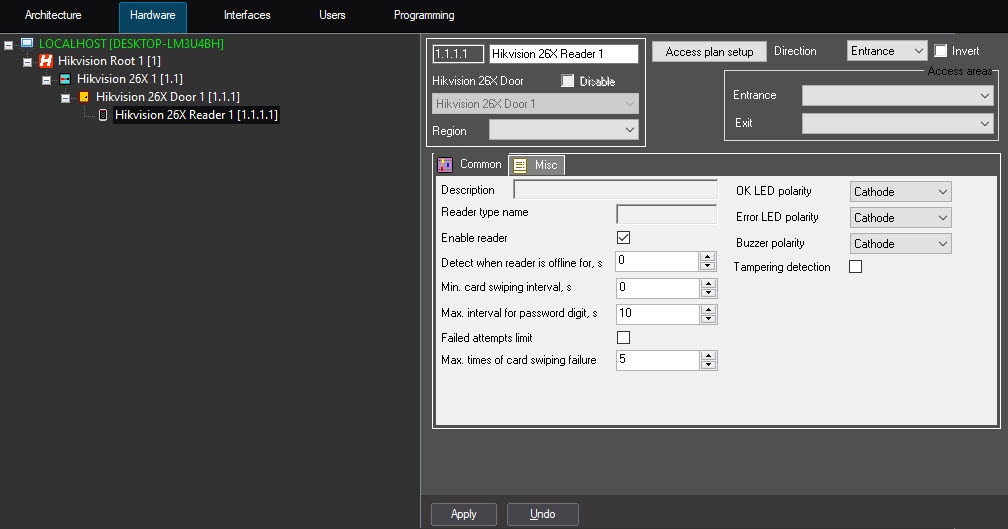

  1. Go to the settings panel of the Hikvision 26X Reader object.
  2. From the Direction drop-down list, select the direction of access through the reader: Exit or Entrance.
  3. Set the Invert checkbox to enable the inverted (reverse) entrance. By default, the checkbox is clear.
  4. From the Entrance drop-down list, select the area located on the exit side of the door.
  5. From the Exit drop-down list, select the area located on the entry side of the door.

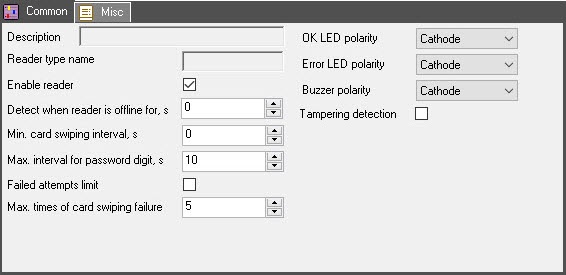

  6. Go to the Common tab.
  7. The Description field displays a description of the reader. You cannot edit this field.
  8. The Reader type name field displays the name of the reader type. You cannot edit this field.
  9. Set the Enable reader checkbox to enable the reader.
  10. In the Detect when reader is offline for, s field, specify the time in seconds, after which the reader will turn off when the connection with the Hikvision controller is lost.
  11. In the Min. card swiping interval, s field, specify the minimum time in seconds in the range from 0 to 255 seconds, during which the repeated card swiping will be invalid.
  12. In the Max. interval for password digit, s field, specify the time interval in seconds between two digits when entering the password on the reader. If the time interval between pressing two digits exceeds the specified value, all previously entered digits will be automatically cleared.
  13. Set the Failed attempts limit checkbox if you want to generate an alarm when the number of card swiping attempts exceeds the number specified in the Max. times of card swiping failure field.
  14. In the Max. times of card swiping failure field, enter the number of card swiping attempts, after exceeding which an alarm will be generated if the Failed attempts limit checkbox is set.
  15. From the OK LED polarity drop-down list, select the polarity of the reader's buzzer when the card is successfully swiped.
  16. From the Error LED polarity drop-down list, select the polarity of the reader's buzzer when the card isn't successfully swiped.
  17. From the Buzzer polarity drop-down list, select the polarity of the reader's buzzer.
  18. Set the Tampering detection checkbox to detect unauthorized access to the reader.
  19. Click Apply button.
