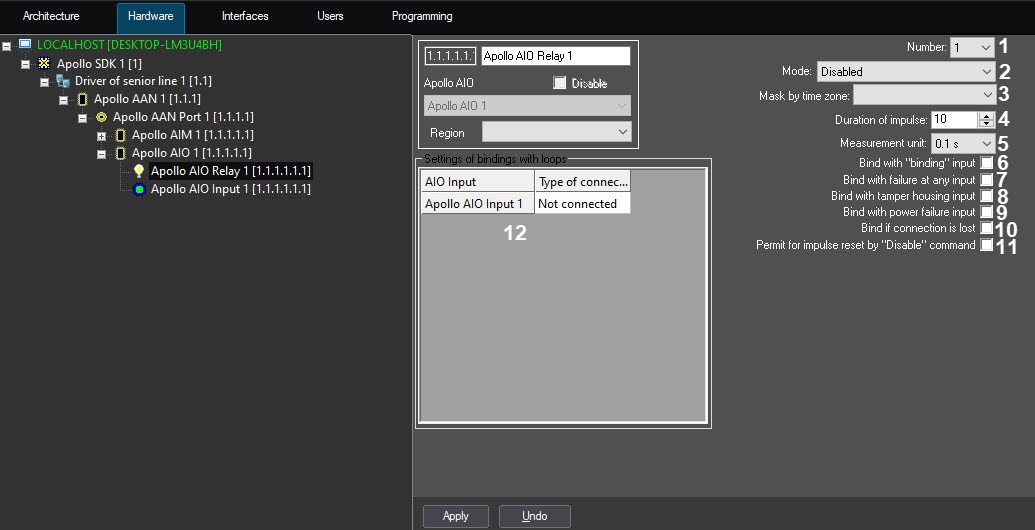

The AIO relay is configured on the settings panel of the Apollo AIO Relay object created on the basis of the Apollo AIO object.

The AIO relay is configured as follows:

  1. From the Number drop-down list, select the number of relay (1).

  2. From the Mode drop-down list, select the mode of relay working (2).

    Mode of relay workingDescription
    DisabledRelay opened
    EnabledRelay closed
    Connected with inputs locallyState of relay depends on state of loops and inputs
  3. From the Mask by time zone drop-down list, select the time zone during which events won't be generated for the relay (3).
  4. Specify duration of relay impulse:
    1. From the Measurement unit drop-down list, select the measurement unit of relay impulse (5).
    2. In the Duration of impulse field, set the value in selected units defining the impulse duration (4).
  5. Set the Bind with "binding" input checkbox if it's required that relay reacts to the Binding state of input (6).
  6. Set the Bind with failure at any input checkbox if it's required that relay reacts to failure of any input (7).
  7. Set the Bind with tamper housing input checkbox if it's required that relay reacts to state of security panel state (8).
  8. Set the Bind with power failure input checkbox if it's required that relay reacts to state of security panel power (9).
  9. Set the Bind if connection is lost checkbox if it's required that relay reacts to loss of connection (10).
  10. If it's required to enable possibility of impulse reset when changing the operation mode to Disabled, set the Permit for impulse reset by "Disable" command checkbox (11).

  11. Configure interaction of relay and inputs (12). In the Type of connection column select state of input at which relay will be closed.

    StateDescription
    Not connectedRelay is always opened at any state of input
    Alarm and tamper

    Relay is triggered in one of the following ways:

    1. Alarm message from input was received.
    2. Message from tamper was received
    Alarm/masked and tamper

    Relay is triggered in one of the following ways:

    1. Alarm message from input was received.
    2. Alarm message from disarmed input was received.
    3. Message from tamper was received
    Alarm/masked, tamper and failure

    Relay is triggered in one of the following ways:

    1. Alarm message from input was received.
    2. Alarm message from disarmed input was received.
    3. Message from tamper was received.
    4. Message about failure was received
  12. Click the Apply button.
