The AIO security panel is configured on the settings panel of the Apollo AIO object created on the basis of the Apollo AAN Port object.

To configure the AIO security panel, do the following:

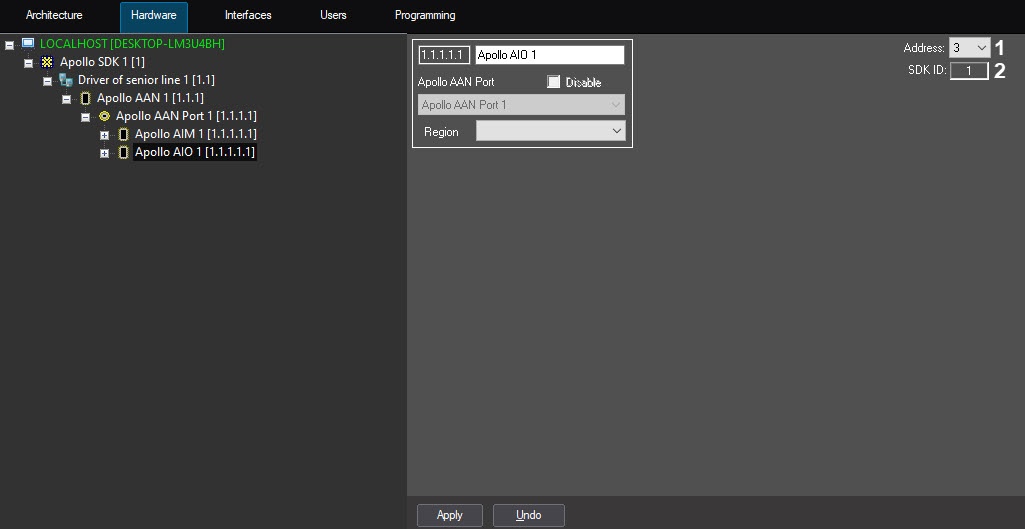

  1. From the Address drop-down list (1), select the address of the module in internal network.

    Note

    The SDK ID field (2) is filled in automatically when object is created, and it contains different values for objects of the same type. For the correct panel operation, it's not recommended to create objects by template (see The Save function). In this case, the value of the SDK ID will be the same.

  2. Click the Apply button.
