The identified vehicles protocol is displayed in the On-line monitor window.

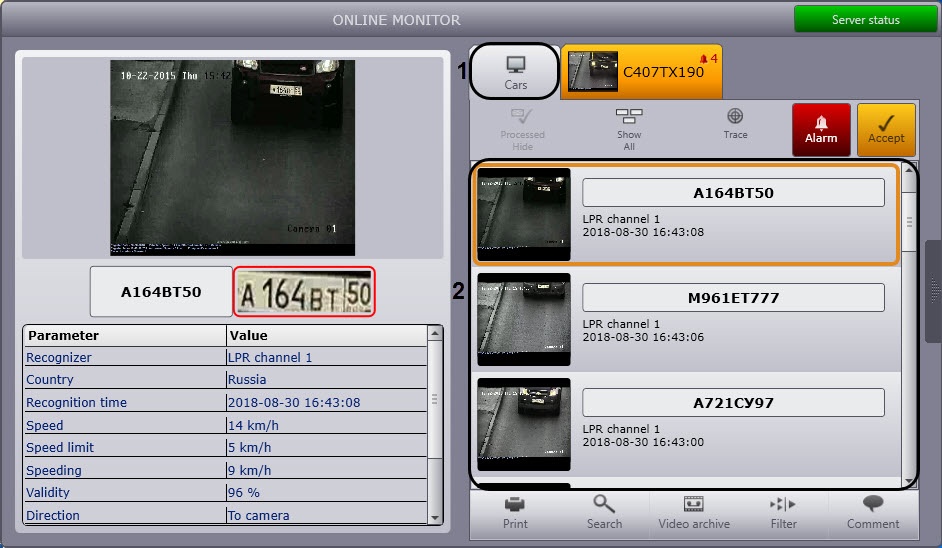

To access to the protocol, go to the Events tab (1). The identified vehicles protocol is a table which contains the information about identified vehicles (2).


For every vehicle (event) the following data is displayed:

  1. video frame of the vehicle (1);

  2. identified vehicle LP number (2);

    Note

    If the LP number hasn't been recognized, UNDEFINED message will be displayed in the field.

  3. vehicle speed;

    Note

    Vehicle speed is displayed only if the Radar module is connected (see Auto-Intellect software package: Administrator guide).

  4. LPR channel (3);
  5. date and time of receiving the information about the vehicle (4).

For alarms, the information about reasons of alarms is also displayed (see Alarms operation). The alarms which were not processed by the operator, are highlighted with red, and processed alarms are highlighted with yellow (see Alarm processing).

Note

Processed events may not be displayed (see Hiding the processed events in the protocol).

To view the detailed information about the event, do the following:

  1. Left-click the required event.
  2. As a result, the data about the vehicle will be displayed in the Last event group. Online update of the identified vehicles protocol will be suspended.
  3. View the data about the event as described in the Viewing the data about the last identified vehicle section.
  4. To restore the online update of the identified vehicles protocol click the Trace button in the upper area of the On-line monitor window.

Viewing the detailed data about the event is complete.
