To enable the manual alarm triggering, do the following:

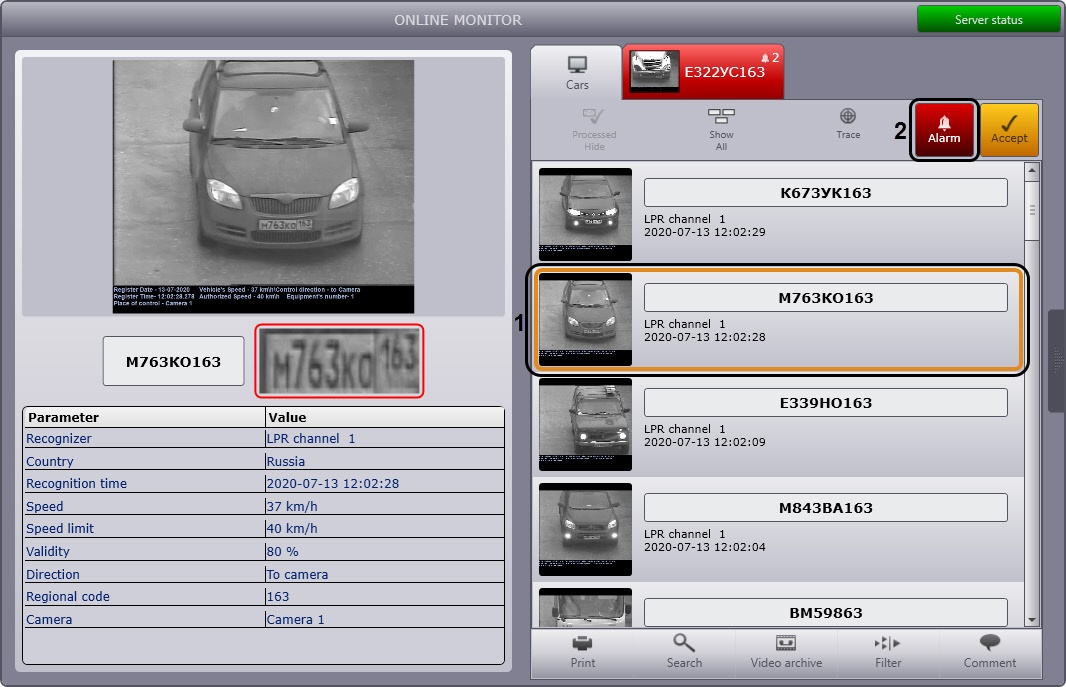

  1. Left-click the required event in the identified vehicles protocol (1).
  2. Click the Alarm button (2).

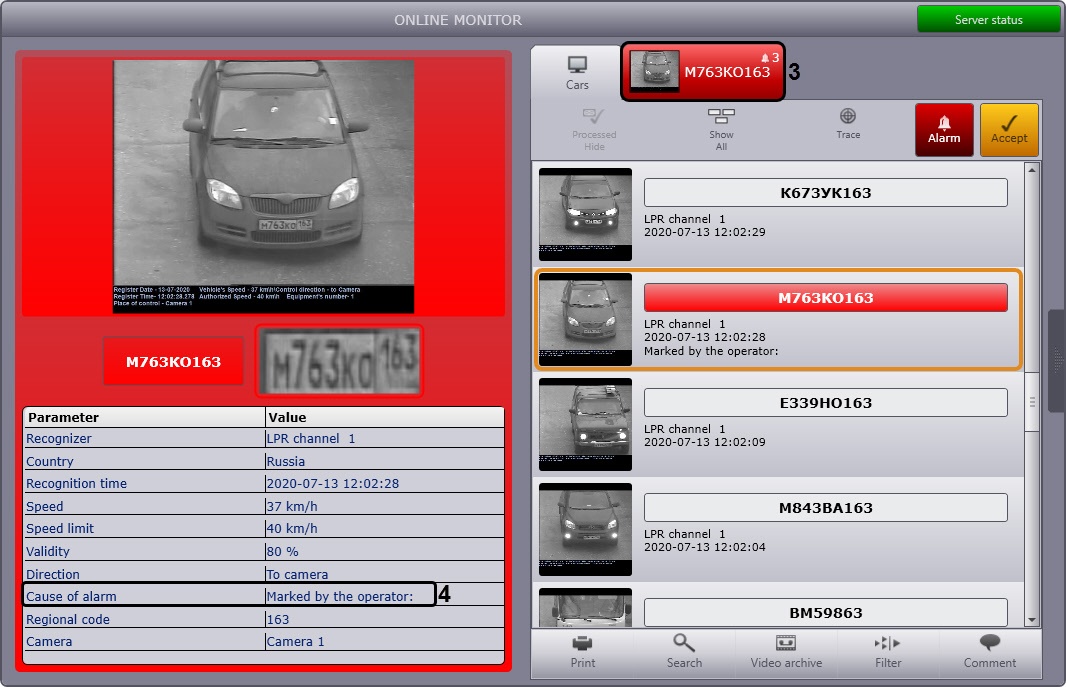

  3. As a result, this event will be highlighted in red, and if it is the first alarm, the Alarms protocol tab will become available (3). For the alarm which was triggered by the operator, the Marked by the operator cause of alarm is displayed (4).

Note.

For the information about alarms protocol, see Viewing the alarms protocol.

Manual alarm triggering is complete.
