Note

The Visitors activity statistics is related to the Heat map detection module, it is necessary to create and configure the corresponding object in DetectorPack PSIM (see Configuring the Heat map detection module).

To generate the Visitors activity statistics report, do the following:

  1. Select the Visitors activity statistics report (see Selecting a type of Visitors behavior analysis reports).
  2. Set the Show in one axis checkbox to display data from different areas in one chart (1). By default, the checkbox is set.
  3. From the Period drop-down list, select the time period for which the report should be created (2). For the Custom 1 and Custom 2 periods, enter the date of start and end periods for which the report should be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool. If the Custom 2 period is selected, enter additionally the start and end time of the period for which the report should be created using the button.
  4. From the Chart step drop-down list, select the time interval in which data will be averaged (3). The list of available steps depends on the selected period (2).

  5. From the Included days of week drop-down list, select the days when most customers work/don't work to consider in statistics (4).

    Note

    If the data period and the specified included days of week don't overlap, an empty report will be created, and a message prompting to change the Included days of week parameter or specify another Period.

  6. In the Detectors field, set the checkboxes next to the areas, the information on which should be displayed in the report (5). Click All to select all objects from the list. Click None to deselect. Click Show all to expand the object structure. Click Hide all to hide the object structure.
  7. Click the Execute button (6) to generate the report.

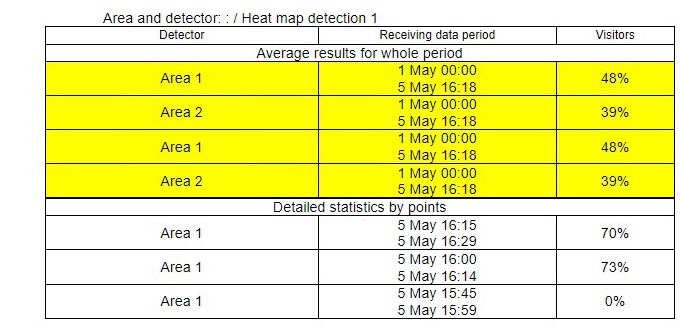

Example of a Visitors activity statistics report.



The report displays the average customer activity by areas for the whole period and the detailed statistics on customer activity for each time interval.
