Configuring the Castle server connection to ACFA PSIM

To configure the Castle server connection to ACFA PSIM, do the following:

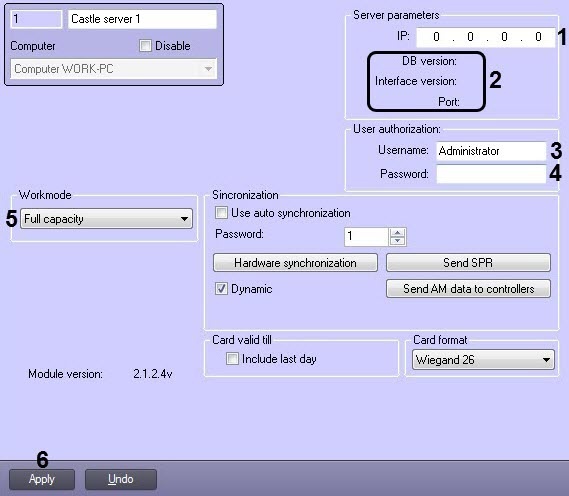

Go to the settings panel of the Castle server object.
In the Server parameters field (1), enter the IP address of the Castle server.
Note
The following information is displayed in the area (2):
- DB version — the version of Castle ACS database;
- Interface version — the version of the data exchange protocol between Castle server and ACFA PSIM;
- Port — the port used for the Castle server-ACFA PSIM connection.
In the Synchronization (3) and Username (4) fields, enter the username and password, respectively, used to login to the Castle ACS Client software (see the official reference documentation for the Castle ACS).
From the Workmode drop-down list (5), select the operation mode of the Castle server:
- Full capacity — configuration, management and monitoring are available.
- Monitoring — only management and monitoring are available. Also, the Synchronization and management of Castle ACS configuration and Configuring the Castle user access cards will be unavailable.
Click the Apply button to save the changes (6).

The Castle server connection to ACFA PSIM is now configured.
