Synchronization and management of Castle ACS configuration

To synchronize and manage the Castle ACS configuration, do the following:

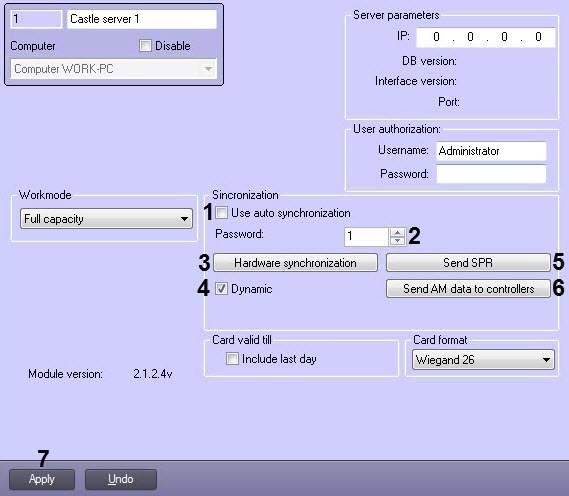

Go to the settings panel of the Castle server object.
Set the Use auto synchronization checkbox (1) if it is necessary to send data from the Access Manager module to the Castle server after a specified time period.
In the Password field (2), enter the time period in hours after which the data of the Access Manager module will be sent to the Castle server.
Note
The time period count starts from the moment the Castle integration module is launched.
Click the Hardware synchronization button (3) to read the Castle ACS configuration stored on the Castle server and to build the corresponding object tree in the ACFA PSIM software package.
Set the Dynamic checkbox (4) if it is necessary to automatically send the changed data of the Access Manager module to the Castle server.
Attention!
To ensure the proper operation of Castle integration module, it is required that the Dynamic checkbox is always set.
Note
In order to speed up the autosync process, the following user sending logic is used.
The users who have at the time of synchronization:
- the card issue date, which has not yet come;
- the card expiration date that has already passed;
- access levels that are unrelated to the the controllers of this Castle server;
- or the User locked property
are not written to the controller.
Click the Send SPR button (5) to send the data from the Access Manager module to the Castle server.
Attention!
The Castle server connection to ACFA PSIM should be configured prior to performing this action.
Click the Send AM data to controllers button (6) to send the previously sent data of the Access Manager module to the Castle controllers.
Click the Apply button (7).

Synchronization and management of Castle ACS configuration are now complete.
