To control PTZ cameras, go to viewing the video from the PTZ camera and click the
button in the upper right corner.
Note
When you switch to PTZ camera control, the mjpeg playback format will be automatically selected and the video image quality will be reduced.
As a result, the PTZ control panel will be displayed at the bottom of the screen.
Control
To control the camera, go to the Control tab. By default, the camera is controlled using the gray circle which simulates the movement of a joystick.
To switch to the discrete method of camera control, click the
button. Using the slider, you can increase or decrease the speed at which the camera position changes. To go to the previous control method, click the
button.
Correction
To change the zoom, iris and focus, go to the Correction tab. Use the Zoom slider to zoom in or out on the video. Use the Iris slider to adjust the aperture of the video camera. Use the Focus slider to adjust the focus of the video camera.
Presets
To open the list of presets for the camera position, go to the Presets tab. If there are any presets, they will be displayed.

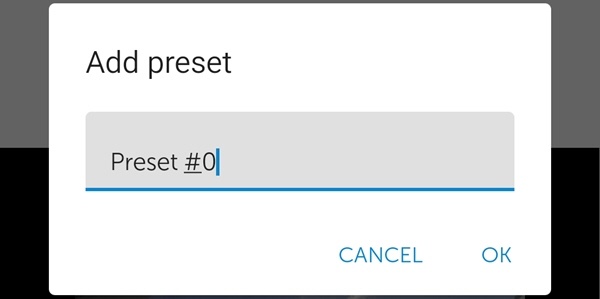

To save the current preset, click the Add preset button. In the window that opens, enter the name of the preset and click OK.
Exit the PTZ control
After you complete working with the PTZ camera, click the
button. As a result, the PTZ control panel will be hidden.
