The Status tab displays the statistics of the connected Server. You can also go to the servers list screen from this tab. To go to the tab, click the More tab → Status.
To go to the servers list screen, click the DISCONNECT button in the upper right corner (see Servers list screen in AxxonNet client on Android OS).

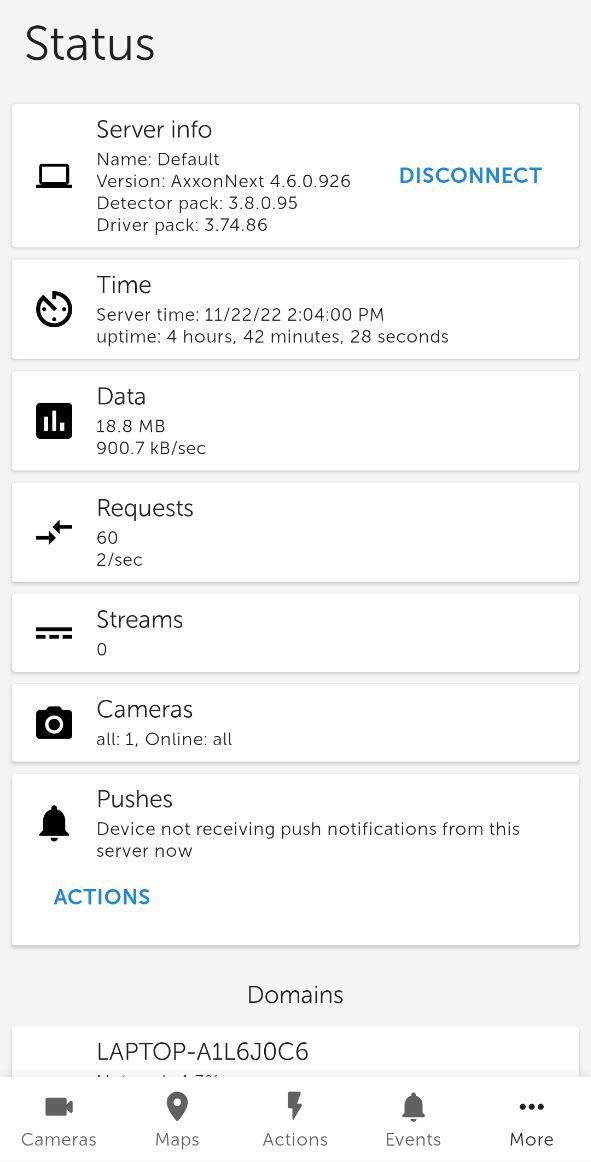

When connected to the Axxon Next Server, the following information is displayed:
- Server info — the Server name and the user name used for connection.
- Time — the current Server time and the Server operating time.
- Data — the amount of data transferred and the transfer rate.
- Requests — the total number of requests to the Server and their rate.
- Streams — the number of active streams.
- Cameras — the number of cameras on the Server, both online and offline.
- Domains — the percentage of network and Server CPU load, the amount of total and free disk space on the Server, and other information about the Server.

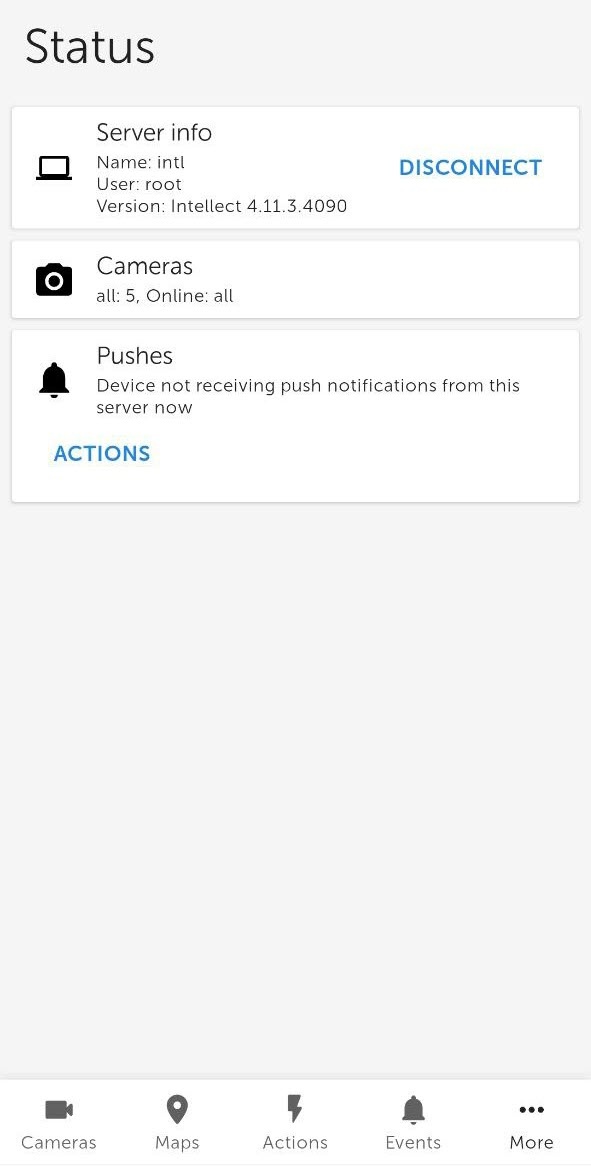

When connected to the Intellect Server, the following information is displayed:
- Server info — the Server name and the user name used for connection.
- Cameras — the number of cameras on the Server, both online and offline.

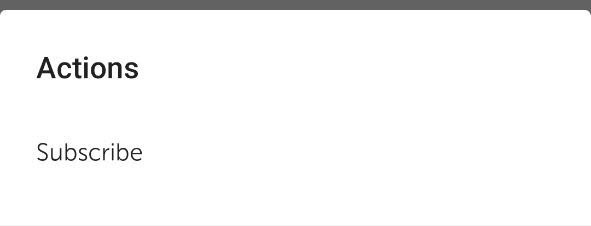

- Pushes — you can subscribe to push notifications from this Server, disable notifications for a while, test the notifications operation, or mark all notifications as read. To do this, click the ACTIONS button and select the required action.

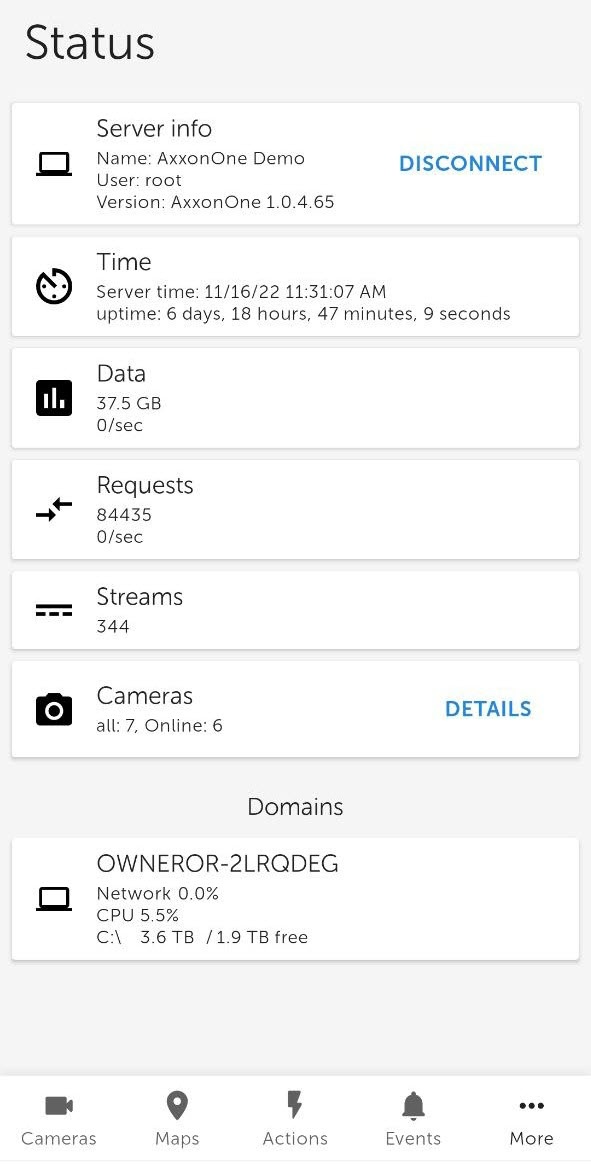

When connected to the AxxonNet cloud service, the following information is displayed:
- Server info — the Server name and the user name used for connection.
- Time — the current Server time and the Server operating time.
- Data — the amount of data transferred and the transfer rate.
- Requests — the total number of requests to the Server and their rate.
- Streams — the number of active streams.
- Cameras — the number of cameras on the Server, both online and offline.
- Pushes — you can subscribe to push notifications from this Server, disable notifications for a while, test the notifications operation, or mark all notifications as read. To do this, click the ACTIONS button and select the required action.
- Domains — the percentage of network and Server CPU load, the amount of total and free disk space on the Server, and other information about the Server.
