Overview

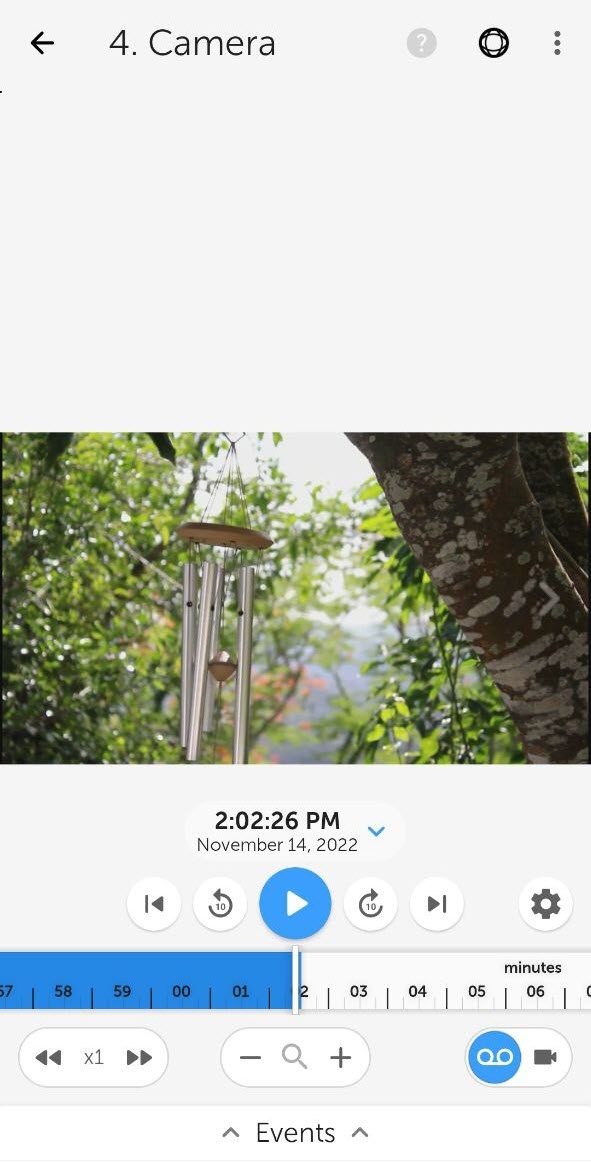

To go to the archive, put the switch in the
position in the live viewing mode. As a result, a window for viewing the video archive will open:
Archive video playback settings
Attention!
The
button is always displayed for the mjpeg playback format. For H.264 and H.265 formats it is displayed only if the video from the camera is recorded to several archives. The playback format depends on the Server configuration.
To select the video resolution or the viewed archive, click the button:

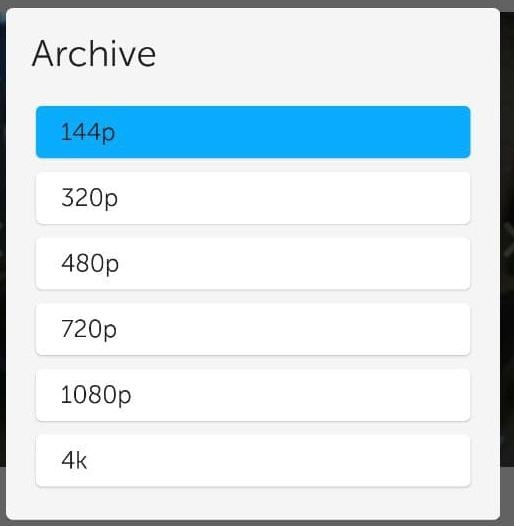

If the archived video is displayed in mjpeg format, then a window will open where you can select the resolution:

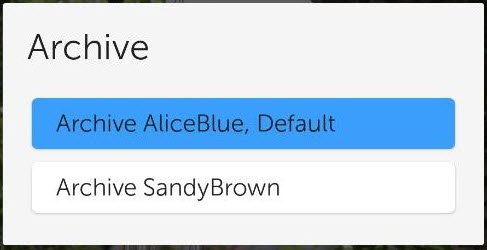

If the video from the camera is recorded to several archives, then a window will open where you can select the required archive for viewing:
Archive video controls

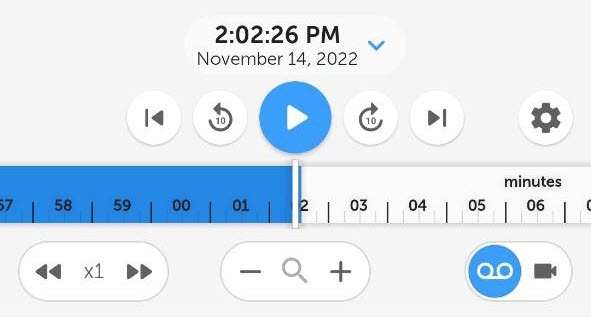

Use the following buttons to control the playback:
- pause,
- play.
You can navigate through the archive using the timeline at the bottom of the screen. Do it by by swiping left and right on the timeline.
You can change the timeline scale by using the
buttons or by using two fingers to pinch in/out the timeline. You can also zoom in on the timeline by double-tapping the timeline.
It is possible to speed up, slow down, and also change the direction (forward/reverse) of playback using the
buttons. The current playback speed is displayed between the buttons. During a reverse playback, a - sign is displayed before the speed rate.
Note
Speeding up the playback is available only on the Axxon Next server connection and for the mjpeg video playback format.
To select the date and time for viewing the archive, click on the date and time:
As a result, a window will open where you can select the date (1) and the exact time (2):
To go to the selected point in time, click OK (3).
Note
If there is no archive record for the specified point in time, you will be positioned to the nearest moment in the archive towards the increase in time.
When you move to the next camera using the
and
buttons, the time in the archive will be set to the same time that was set on the previous camera.
To go to the first record of the archive, click
, to go to the last record of the archive, click
.
To go 10 seconds back, click
, to go 10 seconds forward - click
.
To return to viewing live video, move the switch to the
position (see Viewing live video in AxxonNet client on Android OS).
If the video is recorded with sound, you can turn it on using the
button, and turn it off using the
button.
Note
The audio control button may not appear if the video has not started playing.
To view the video in picture-in-picture mode, click
button in the upper right corner and select Picture-in-picture in the menu that opens. To return to viewing the video in normal mode, click on the floating window with the video.
To rotate the camera image, click button in the upper right corner and select Image rotation in the menu that opens. Select the rotation angle in the window that opens:
Select the required rotation angle, and click OK.
Horizontal display
On Android mobile devices, the application is available in vertical and horizontal display. To change the display, it is necessary to enable the ability to change the screen orientation and rotate the device in the device settings.
In horizontal display, controls hide automatically with a small delay and reappear when you tap on the screen.
