For the camera to be displayed on the geomap the camera name is to contain geographical coordinates in [X, Y, Z] format,
where
X - latitude;
Y - longitude;
Z – camera rotation angle relative to the vertical axis, optional parameter.
For instance, this camera will be displayed on the map in the point with [53.462076, -2.289342] coordinates.
To view the geomap, call the main menu by clicking the
button and select the Map item.

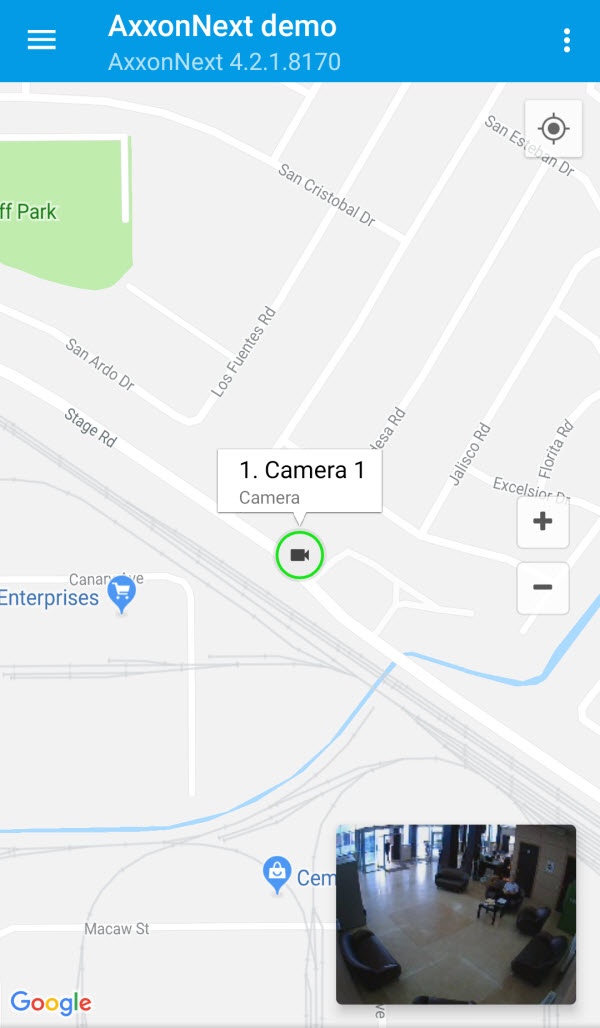

As a result, a map with camera icons will open.
Live video appear in the bottom right corner of the screen when clicking the camera icon on the map (if this option is enabled in settings, see Configuring geomaps).
Video will be played back in a new window when clicking the video or camera name (see Viewing live video in the Android mobile client).
Note
Location of the mobile device on the map is marked
.

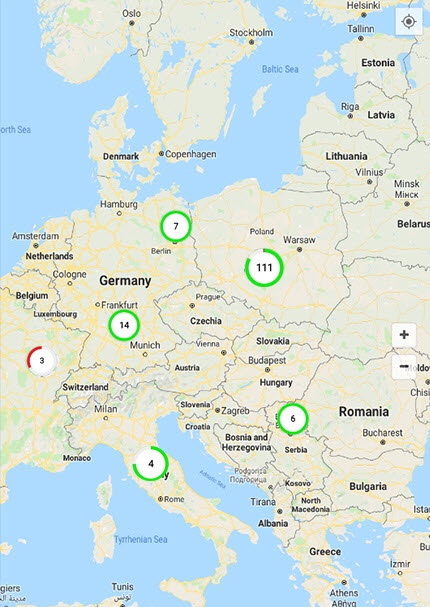

If you zoom out, the cameras will be grouped into clusters. Each cluster is displayed on the map as a circular progress bar, showing active cameras in green, disabled cameras in gray, and disconnected cameras in red. The total number of cameras in the cluster is displayed in its center.
