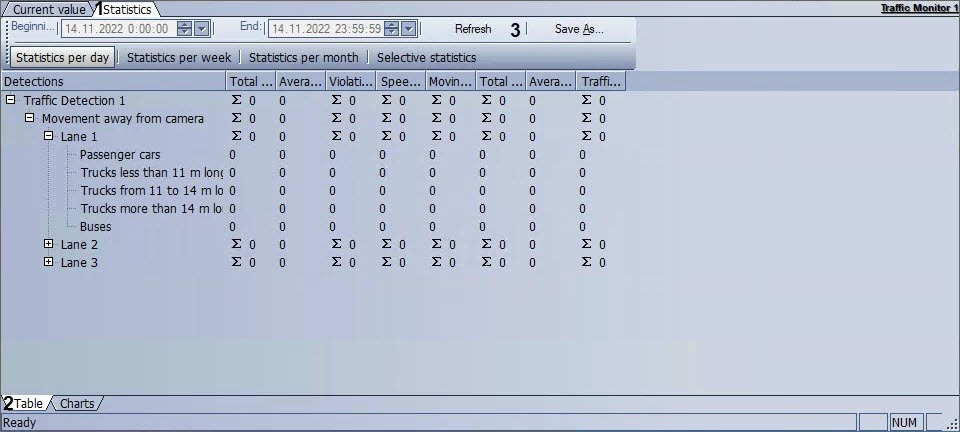

The traffic statistics in table form are displayed in the Table sub-tab (2)  of the Statistics tab (1).

The traffic statistics are displayed in the following tree structure: Recognizer name -> Movement direction -> Lane -> Vehicle type. The statistics data for each level of the tree is shown.

Note.

To refresh the displayed statistics, click the Refresh button (3).
