The LPR channel can operate together with the Speed traps server module. In this case, each vehicle recognized by the LPR channel is compared to the speed value specified in the speed-trap device.

Note

This settings is specified only when the Auto-Uragan, AR-Auto or VT program modules are used.

To set up the joint operation of the LPR channel and Speed traps server module, do the following:

  1. Go to the settings panel of the LPR channel object, corresponding to the activated Auto-Uragan, AR-Auto or VT program module (see Activating the software module used for identifying the plates).

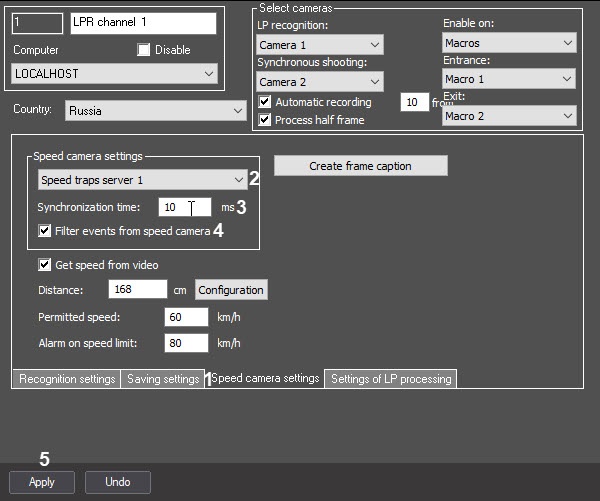

  2. Go to the Speed camera settings tab (1).
  3. In the Speed camera settings drop-down list (2), select the Speed traps server object representing the speed-trap device directed at the same lane as the LPR channel camera.

  4. In the Synchronization time...ms field (3), enter the time period in milliseconds that it takes the vehicle to drive from the spot of speed detection by the speed-trap device to the FOV of the LPR channel recognition video camera.

    Note

    The Synchronization time parameter is used to synchronize the operation of the Speed traps server module and the LPR channel.

  5. Set the Filter events from speed camera checkbox (4) if it is necessary to record only the first speed value detected by the speed-trap device, while other values are ignored until the delay expires or until the LP number is recognized.
  6. Click the Apply button (5).

The joint operation of the LPR channel and Speed traps server module is complete.
