To open the configuration, do the following:

  1. Select Open from File menu to open the configuration file.

    Important!

    The location of the PpmCfg.dat configuration file depends on the current SDK version (see Setting up the AUTO-Uragan module):

    • For SDK ver. 3.5: <Axxon PSIM installation folder>\Modules\UrmLpr\Auto_uragan\Data\PpmCfg.dat
    • For SDK ver. 3.7: <Axxon PSIM installation folder>\Modules64\UrmLpr\Auto_uragan\UrmSDK<SDK version>\Data\PpmCfg.dat

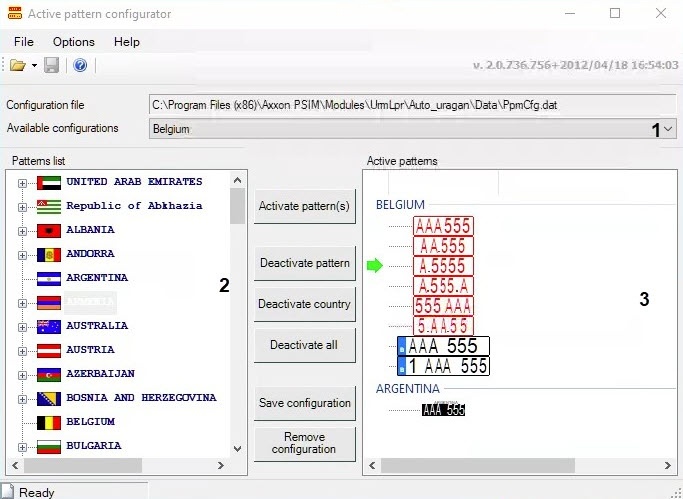

  2. Select the needed configuration from the Available configurations drop-down list (1).
  3. List of patterns will be displayed in the Patterns list field (2).
  4. Pattern list of selected configuration will be displayed in the Active patterns field (3).

Configuration opening is completed.
