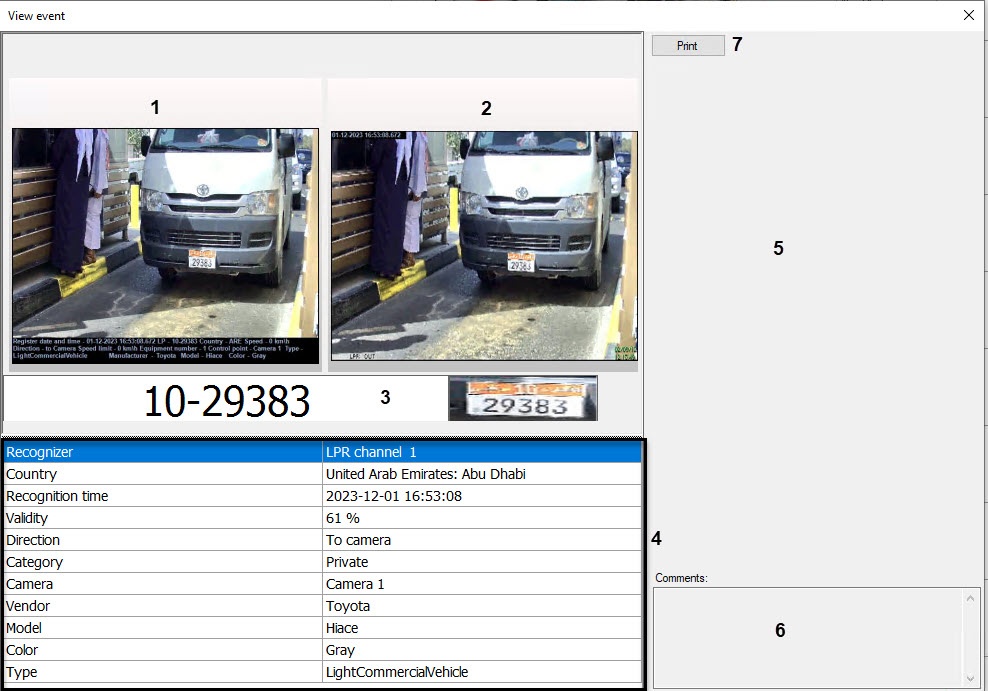

To view the event data, double left-click the corresponding string in the search results table. The View event dialog window will open.

In the View event window, the following event information is displayed:

  1. The main video frame with a caption in the black area which contains the following data (1):
    1. date and time of receiving the vehicle data;
    2. vehicle license plate;
    3. counrty;
    4. type of license plate (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    5. vehicle speed;
    6. vehicle direction;
    7. speed, permitted on the controlled road area;
    8. ID of speed detector;
    9. control point—name of the camera that captured the vehicle;
    10. vehicle vendor (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    11. vehicle model (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    12. vehicle color (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module).

      Note

      By double-clicking in a separate window, you can view the frame with a recognized vehicle. The set window sizes are saved after you restart the computer.

      You can use the parameters of the FontSize.N and TimestampFontSize.N registry keys to change the size of the black area containing captions and their font (see Registry keys reference guide. For more information on working with the registry, see Working with Windows OS registry).

  2. Additional video frame if any (2).

    Note

    By double-clicking in a separate window, you can view the frame with a recognized vehicle. The set window sizes are saved after you restart the computer.

  3. Field (3) with the following data:
    1. recognized license plate of a vehicle;
    2. image of a recognized license plate.

      Note

      By double-clicking in a separate window, you can view the image of a recognized license plate. The set window sizes are saved after you restart the computer.

  4. Field (4) with the following data:
    1. recognizer of a vehicle license plate;
    2. country;
    3. date and time when the vehicle license plate was recognized;
    4. validity in %;
    5. vehicle direction in relation to the license plate recognition camera;
    6. name of the camera that captured the vehicle;
    7. vehicle speed;
    8. vehicle vendor (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    9. vehicle model (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    10. vehicle color (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module);
    11. type of license plate (only for the Vehicle type recognition module, RR vendor and model recognizer module, or AR MMR module).
  5. Vehicle data from the external LP database if the recognized LP has been found there (5);
  6. Comments to the event (6).

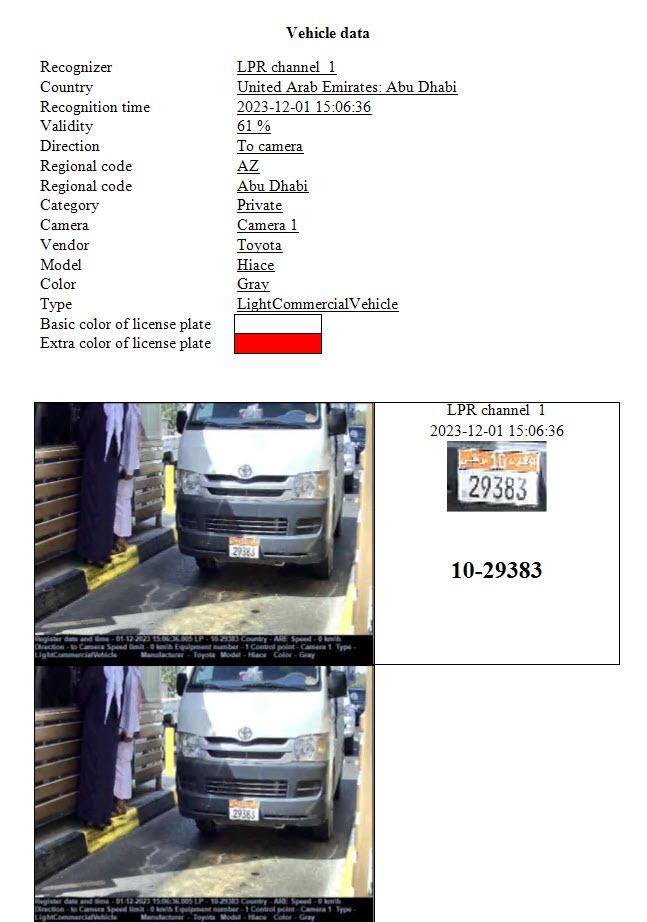

To print the Report or/and export it to one of the most commonly used formats, click the Print button (7). A program to preview the report will launch. The vehicle data report will be displayed in the window of this program.

Perform the necessary operations with a report and then quit the program by clicking the File -> Exit menu items, or by clicking the button (see step 4 in Printing and exporting the vehicle data).
