To configure the Speed-trap device, do the following:

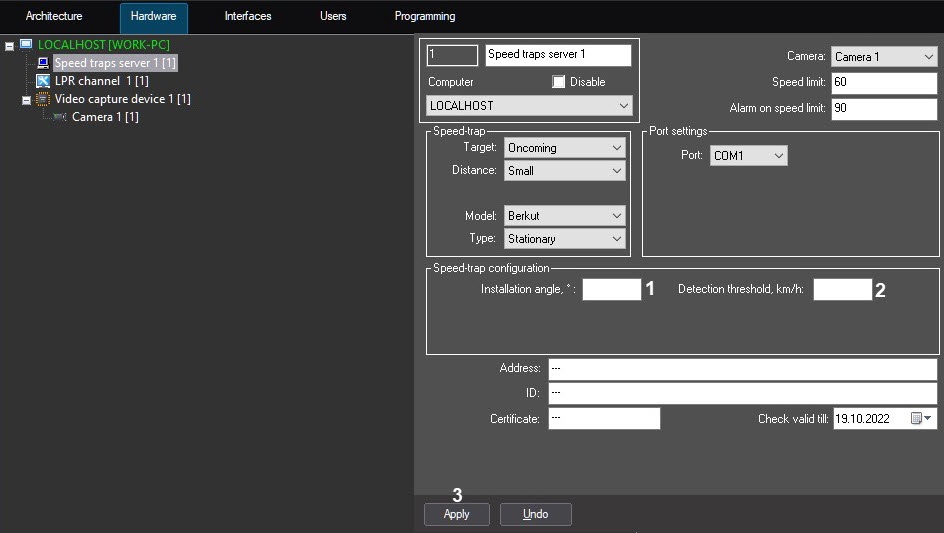

  1. Go to the Speed traps server object.

  2. In the Installation angle, * field (1), enter the inclination angle at which the Speed-trap device is installed above the traffic lane (see the official documentation for the Speed-trap device).

    Note.

    Depending on the Speed-trap device model, the system may ignore this option if it is not applicable to that particular speed-trap model (see the official documentation for the Speed-trap device).

  3. In the Detection threshold km/h field, enter the minimum vehicle speed determined by the Speed-trap device (2). For vehicles moving slower than a given threshold, the speed will not be determined by the Speed-trap device.
  4. Click Apply (3).

The Speed-trap device is now set up.
