If the frame recording to the LP numbers database is activated, digital sign will be automatically assigned to every recorded LP number.

There is a possibility of changing digital sign parameters.

Note

This setting is not available for the following modules: Remote recognition, AR-Railway, AR-Auto.

To set up the parameters of the digital frame sign, do the following:

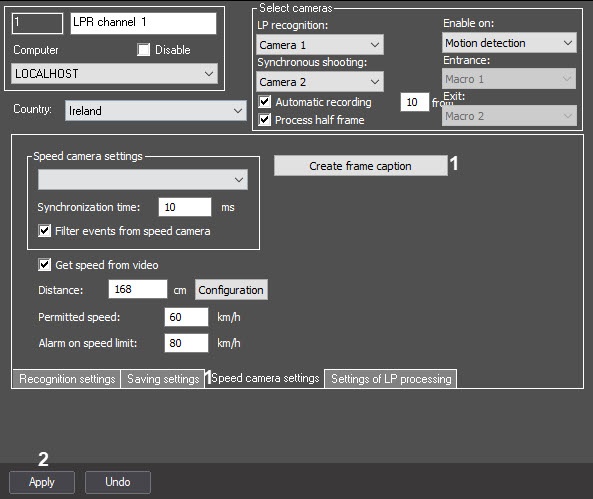

  1. Go to the Speed camera settings tab (1) on the settings panel of the LPR channel object, corresponding to the activated module (see Activating the software module used for identifying the plates).

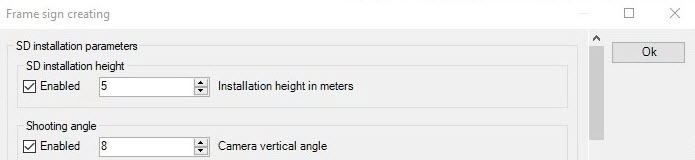

  2. Click the Create frame caption button (1). The Frame sign creating dialog window will be displayed as a result.

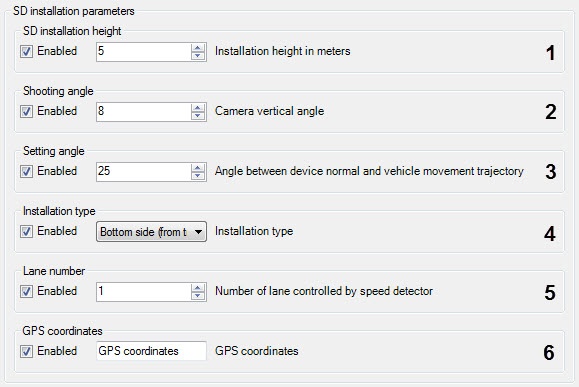

  3. Add one or several camera installation and speed detector parameters together with LPR channel to a frame sign. Set the Enabled checkboxes for necessary parameters in the SD installation parameters group and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    SD installation height

    Speed detector installation height in meters

    2

    Shooting angle

    Angle, made by an camera's lens optical axis and camera's vertical support, in degrees

    3

    Setting angle

    Projection to the horizontal plate of the angle, made by speed detector's normal line and vehicle direction trajectory, in degrees

    4

    Installation type

    Installation type of speed detector

    5

    Lane number

    Lane number, controlled by speed detector

    6

    GPS coordinates

    GPS coordinates of speed detector. Maximum number of characters: 21

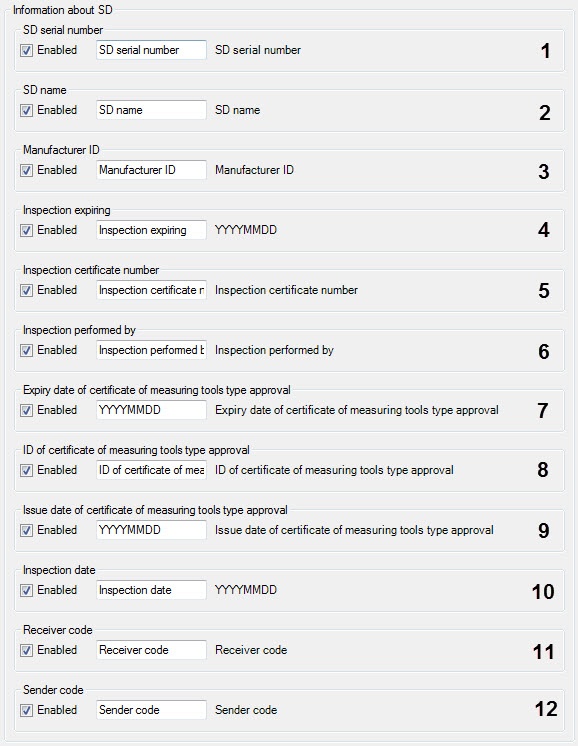

  4. Add one or several speed detector parameters to the frame sign. Set the Enabled checkboxes for necessary parameters in the Information about SD group and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    SD serial number

    Serial number of speed detector

    2

    SD name

    Speed detector's name

    3

    Manufacturer ID

    Speed detector's manufacturer identifier

    4

    Inspection expiring

    Date in the YYYY.MM.DD format, till which the speed detector's metrological check is valid

    5

    Inspection certificate number

    Number of inspection certificate about the last speed detector's metrological check

    6

    Inspection performed by

    Authority, who has performed the last speed detector's metrological check

    7Expiry date of certificate of measuring tools type approvalDate in the YYYY.MM.DD format, till which the certificate of measuring tools type approval is valid
    8ID of certificate of measuring tools type approvalNumber of certificate of measuring tools type approval
    9Issue date of certificate of measuring tools type approvalDate in the YYYY.MM.DD format when the certificate of measuring tools type approval was issued

    10

    Inspection date

    Date in the YYYY.MM.DD format of the last speed detector's metrological check

    11Receiver codeReceiver code of the speed detector
    12Sender codeSender code of the speed detector

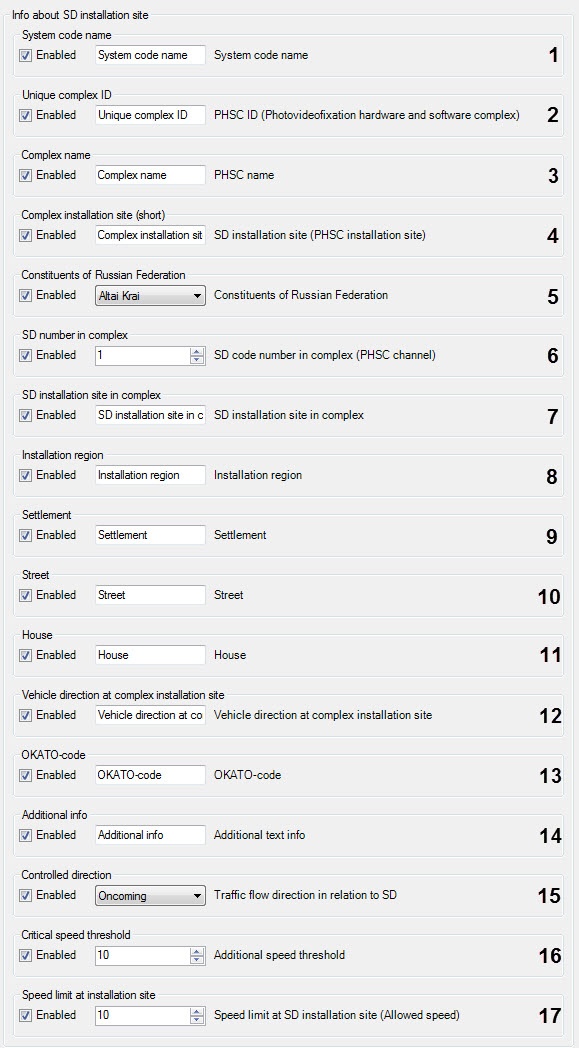

  5. Add one or several speed detector parameters to the frame sign. Set the Enabled checkboxes for necessary parameters in the Info about SD installation site and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    System code name

    Code name of the photo-video fixation system which contains functioning speed detector

    2

    Unique complex ID

    By default, the identifier of the LPR channel object in Auto PSIM is displayed. If the default value is changed, the string indicated in the field will be displayed

    3

    Complex name

    Complex name

    4

    Complex installation site (short)

    Short description of complex site

    5Constituents of Russian FederationThe constituent member of the Russian Federation where the Speed detector is installed

    6

    SD number in complex

    Speed detector number in the complex (channel number)

    7

    SD installation site in complex

    Description of speed detector site in the complex

    8

    Installation region

    Region where speed detector is installed

    9

    Settlement

    Settlement where speed detector is installed

    10

    Street

    Street where speed detector is installed

    11

    House

    House near which speed detector is installed

    12

    Vehicle direction at complex installation site

    Vehicle's direction at the complex site

    13

    OKATO-code

    Speed detector site code in All-Russian classifier of administrative territorial division

    14

    Additional info

    Additional information about speed detector

    15

    Controlled direction

    Vehicle's direction in respect of speed detector that controls it

    16

    Critical speed threshold

    Vehicle's speed that is considered to be critical (for example, alarm is being generated in the process)

    17

    Speed limit at installation site

    Allowed vehicle speed at the road side, controlled by the speed detector

  6. Click the OK button to save the changes and close the Frame sign creating window.

    Note

    Click button to close the window without saving the changes.

  7. Click the Apply button (2) on the settings panel of the LPR channel object.

Setting up the digital frame sign is completed.
