Speed-traps are connected to the server via the COM port. Any number of speed-trap devices can be connected to Auto PSIM, depending on customer needs.

Specialized protocol is used for data exchange with the speed-traps via the COM port. Each Speed-trap uses its individual protocol for data exchange.

Several COM ports should be set up one by one. Each speed-trap device is represented by a separate Speed traps server object created and set up in the Hardware tab of the System Settings window.

To set up a COM port for speed-trap connection, do the following:

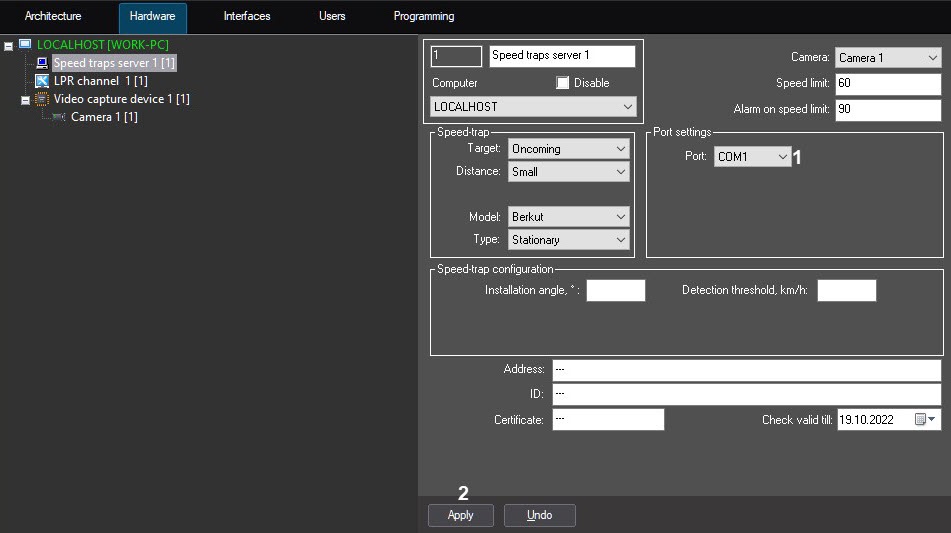

  1. Go to the Speed traps server server object settings panel.
  2. In the Port drop-down list, select the COM port to connect the speed-trap (1).
  3. Click Apply (2) to save all changes.

The speed-trap is now connected to the server.
