You can launch the PatCfgr.exe utility in one of the following ways:

  1. From the Start menu.
    • To configure the SDK templates for version 3.5, click Start menu -> Axxon PSIM -> Utilities -> Uragan Pattern Configurator 3.5.
    • To configure the SDK templates for version 3.7, click Start menu -> Axxon PSIM -> Utilities -> Uragan Pattern Configurator 3.7.
  2. From the Auto PSIM software installation directory.
    • For SDK version 3.5: <Axxon PSIM installation directory>\Modules\UrmLpr\Auto_uragan\Bin\PatCfgr.exe
    • For SDK version 3.7: <Axxon PSIM installation directory>\Modules64\UrmLpr\Auto_uragan\UrmSDK<SDK version>\PatCfgr\Bin\PatCfgr.exe

After starting the PatCfgr.exe utility, the Active pattern configurator window will open.

Note.

To change the language of PatCfgr.exe utility interface, do the following:

  1. Select Language from Settings menu.

  2. Select the needed interface language.

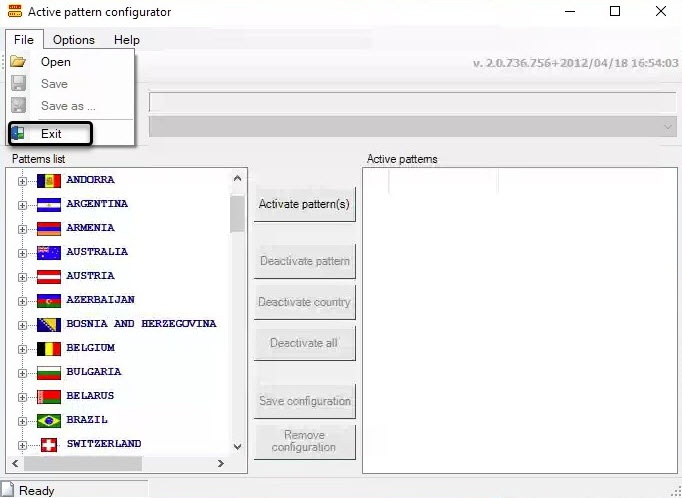

Click the  button or select Exit from File menu to close the PatCfgr.exe utility.
