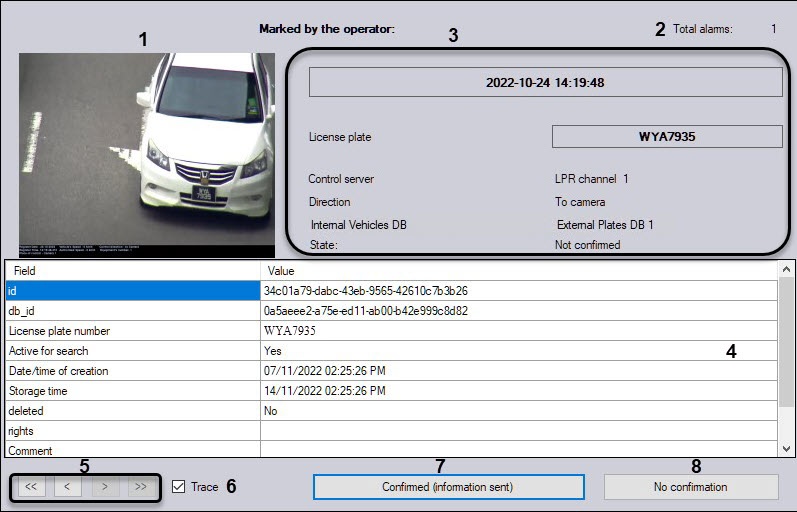

The Alarm window contains the following interface elements.

Description of the interface elements of the Alarm window.

Element number

Element

Description

1

Frame area with a caption

Signed video frame with a moving vehicle

2

Total alarms

Number of unprocessed alarm events

3







Information area about the captured event

Date/time

Date and time when an alarm event was recorded

License plate

Vehicle license plate number

Control server

Recognition channel that captured an alarm

Direction

Direction of vehicle movement relative to camera

Internal Vehicles DB

External database of vehicle license plates

Note. The Internal Vehicles DB field isn't displayed if an alarm event was initiated manually

State

Current state of an alarm event

There can be the following states of an alarm event:

  • Not confirmed—a new event that has not yet been confirmed;
  • Processing...—an alarm event is confirmed, but the information has not yet been recorded to the database;
  • Confirmed—an alarm is confirmed and recorded to the database (you may not notice this state since the event is deleted from the Alarm window after a successful confirmation);
  • Error—confirmation isn't recorded to the database due to the heavy load on the Server. It is necessary to confirm the event again

4

Table with a description from Internal Vehicles DB

Description from Internal vehicles database

Note. The table with description from Internal vehicles database isn't displayed if an alarm event was initiated manually

5

Buttons to move through alarm events in the list

Go to the first alarm event in the list ; go to the previous alarm event in the list ; go to the next alarm event in the list ; go to the last alarm event in the list

6

Trace

If the checkbox is set, when an alarm is confirrmed, it disappears from all alarm windows in the distributed configuration; when an alarm isn't confirmed, it disappears only from the current alarm window.
If the checkbox isn't set, when an alarm is confirrmed or isn't confirrmed, it disappears only from the current alarm window

7

Confirmed (Information sent)

Confirmation of the alarm status of an event. If you click this button, an alarm is marked as accepted in the Online monitor window. A window offering to print the alarm event card is also displayed

8

No confirmation

Close the alarm window. If you click this button, the status of an alarm event isn't changed in the Online monitor window. Alarm disappears from the Alarm window
