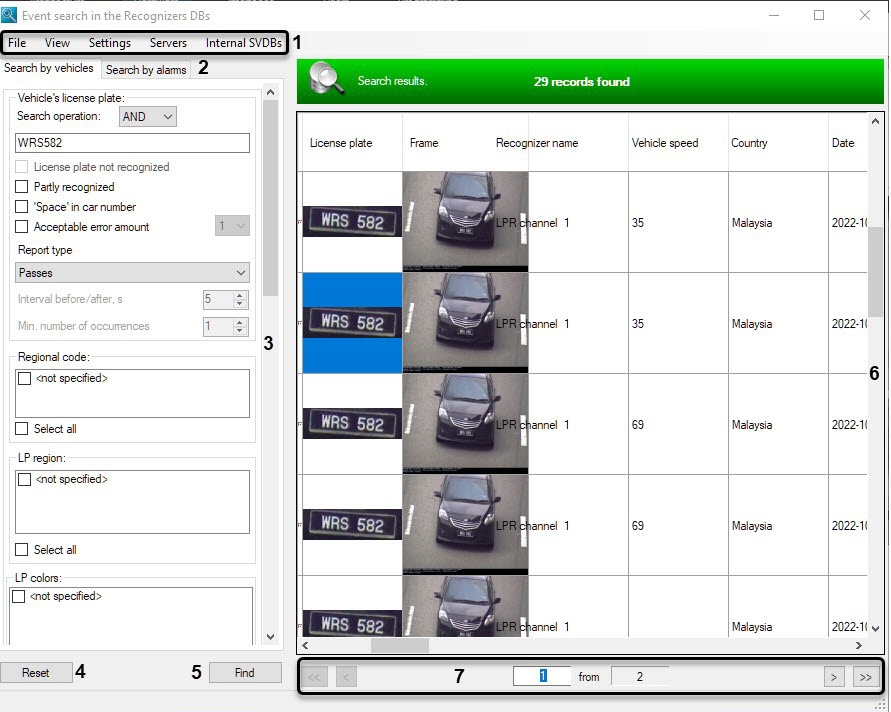

The Event search in the Recognizers DBs window contains the following interface elements.

Description of the interface elements of the Event search in the Recognizers DBs window.

Element number

Element

Description

1

Main menu

The main menu, which you can use to perform the following operations:

  1. The File command:
    1. Print the event search results.
    2. Close the Event search in the Recognizers DBs window.
  2. The View command:
    1. Configure the display of remote servers and databases.
  3. The Settings command:
    1. Configure the display of event search results.
    2. Connect the recognizers databases.
  4. The Servers command:
    1. Select the servers for searching the events.
  5. The Internal SVDBs command:
    1. Edit the user "Active tracking" database

2

Search type tabs

Select the search type: by vehicles or by alarms

3

List of fields for search query

Form the search query of the selected search type

4

Reset

Clear the search form from the specified search criteria

5

Find

Start the processing of the search query

6

Search results table

Display of the event search results in the form of a table

7

Navigation panel through search results table

Go to the first page of the search results ; go to the previous page of the search results ; go to the next page of the search results ; go to the last page of the search results , number of the displayed page from the total number of search result pages
