The External Plates DB object settings panel

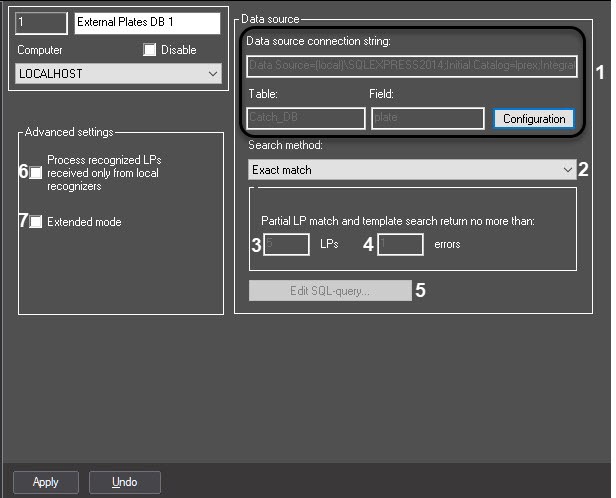

The External Plates DB object settings panel includes the following interface elements:

The following table describes the elements of the External Plates DB object settings panel.

№	Parameter name	Parameter setting method	Description	Data type	Default value	Value range
1	Data source connection string text field	Automatically, after setting up the connection	Connection string to the external database	Latin and special symbols	-	A sting, containing a sequence of characters (letters, digits, characters) non case-sensitive
	Table text field	Automatically, after setting up the connection	Plates table name in the database	Latin and special symbols	-	A sting, containing a sequence of characters (letters, digits, characters) non case-sensitive
	Field text field	Automatically, after setting up the connection	Plates table name in the database	Latin and special symbols	-	A sting, containing a sequence of characters (letters, digits, characters) non case-sensitive
	Configuration button	Click the button	Access to connection settings	-	-	-
2	Search method drop-down list	Select the value from the list	Search method selection of identified number in the external database	A list of available search methods	Exact match	Partial search − the found expressions containing the key word in any position and order are returned. Wildcard search − the found expressions matching the given wildcard are returned. Exact match − the found expressions that exactly match the key word are returned. SQL query − the expressions defined by the SQL query are returned. With acceptable number of errors − the found expressions that are partially or completely contained in the number in the external plate database are returned. You can select the maximum number of errors (mismatches of characters) in the number
3	Partial LP match and template search return no more than...LPs text field	Enter the value in the field	Setting the maximum number of license plates returned when searching by part of the number or number template in the external plates database.	integer	5	1-1000
4	Partial LP match and template search return no more than...errors text field	Enter the value in the field	Setting the maximum number of errors (character mismatches) in the search request and numbers in the external plate database.	integer	1	>0
5	Edit SQL-query button	Click the button	Access to SQL-query, used in the search method «SQL-query»	-	-	-
6	Process recognized LPs received only from local recognizers chechbox	Set the checkbox	Specifies the mode when LPs only from local recognizers are processed	Boolean type	No	Yes – the mode when LPs only from local recognizers are processed is enabled. No – the mode when LPs from all recognizers are processed is disabled
7	Extended mode checkbox	Set the checkbox	Enables the extended mode	Boolean type	No	Yes – the extended mode is enabled. No – the extended mode is disabled
