The Online monitor

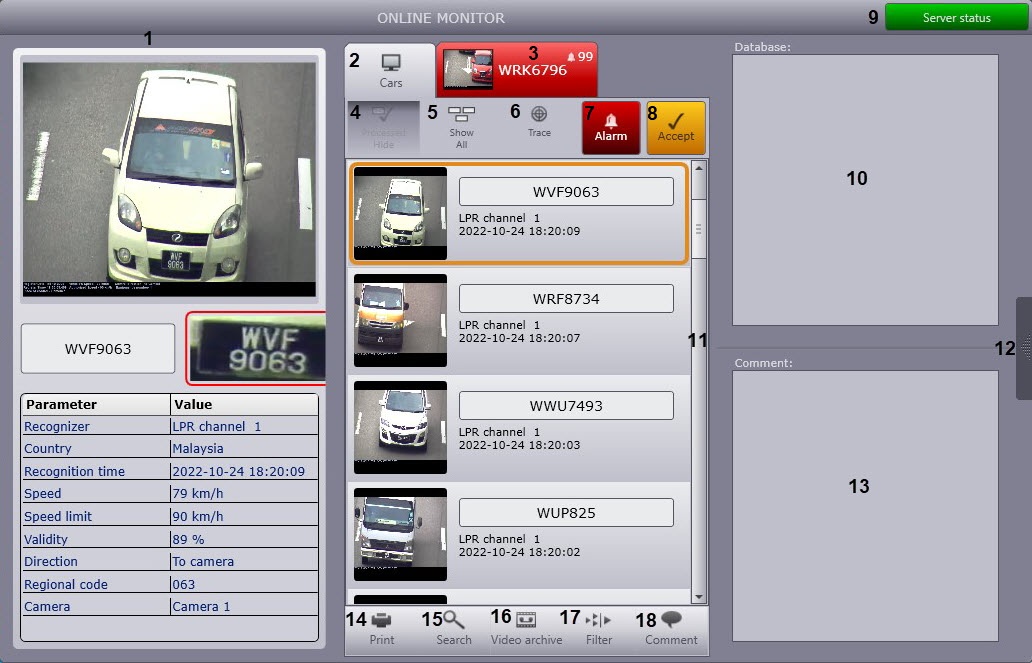

The Online monitor contains the following interface elements.

Description of the interface elements of the Online monitor.

Element number	Element	Description
1	Area	Information about the last passed vehicle or about an event, selected in the identified vehicles protocol or in the alarms protocol
2	Cars	Access to the identified vehicles protocol
3	Alarms protocol	When an alarm event occur, you can go to the Alarms protocol tab. This tab displays the video frame and the number of the most recent alarm event
4	Processed Hide	Hide the processed events in the protocols
5	Show All	Enable/disable the pre-configured filters
6	Trace	Resume the online update of the displayed vehicle protocol
7	Alarm	Alarm initiated by the operator
8	Accept	Alarm acceptance
9	Server status	Go to the list of errors occurred in the Vehicle Tracer module
10	Database	Display of the information from the external database
11	Event table	Identified vehicles protocol or the alarms protocol depending on the activated tabs—Cars tab or Alarms protocol tab
12	Collapse/expand button	Collapse/expand the panel with comments and external database
13	Comment	Display of the comment to the selected event
14	Print	Create the report with data about the selected event
15	Search	Open the window for searching in the databases of license plate recognizers
16	Video archive	Go to the video archive of identified vehicles
17	Filter	Go to the filter settings used in protocols
18	Comment	Comment to the selected event with specified date and time of the comment creation
