The ULPR server debug window interface

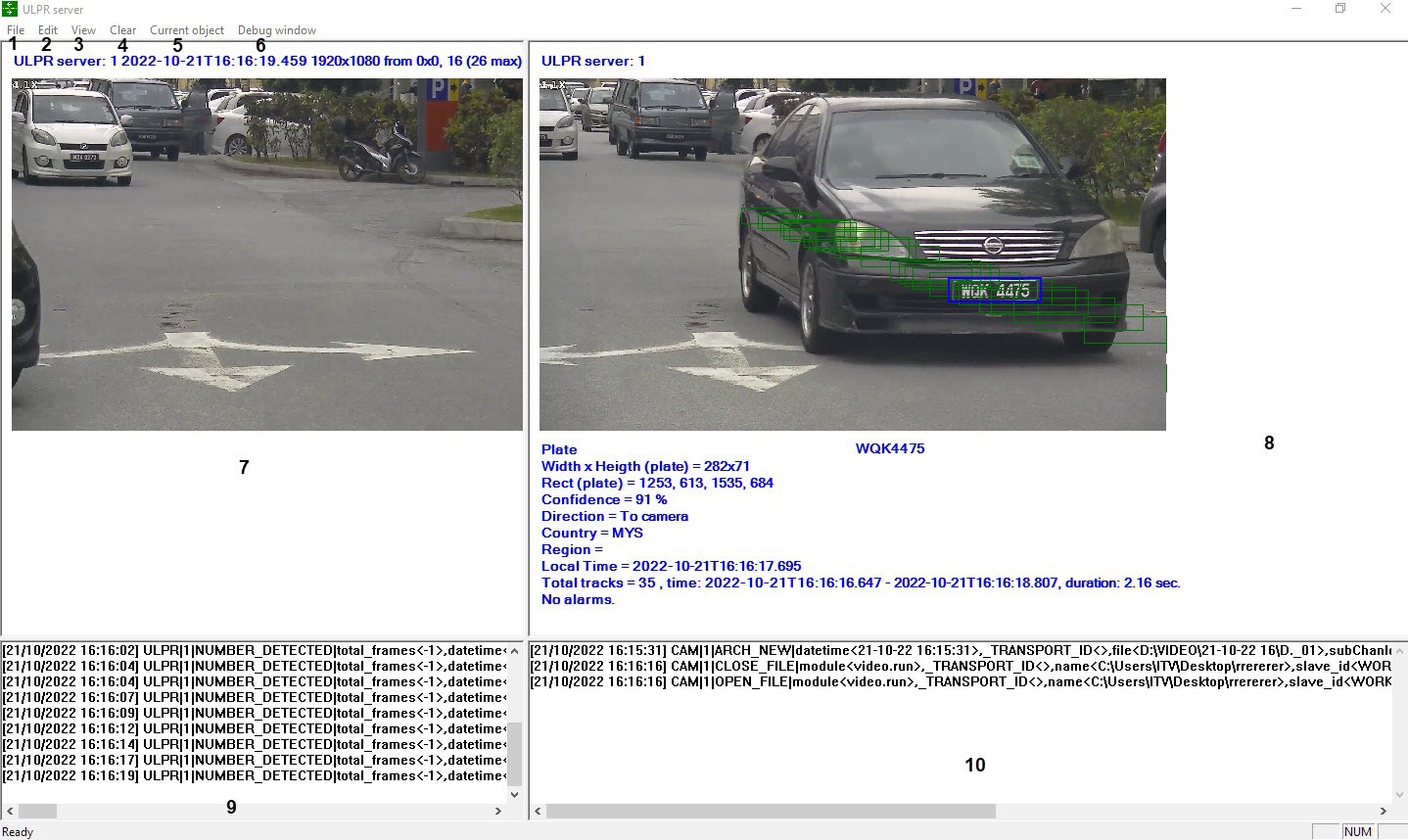

The ULPR server debug window contains the interface components described in the table below.

Number	Name	Description
1	The File menu	Access to the Edit Nearest Time button (see Editing the Nearest Time for the specified remote recognition module) Access to the Exit button
2	The Edit menu	Access to the operations with text Access to the Force clear database button (see The forced clearing of the license plate numbers database)
3	The View menu	Access to the Status bar button used to display or hide the status bar of the Debug window in the lower part of the window
4	The Clear button	Clearing all areas
5	The Current object menu	Access to the selection of the LPR channel with which the operation will be carried out
6	Debug window	-
7	The preview area of the video image from the camera	The video image from the camera and the data on the video stream are displayed in this area
8	The preview area of the frame with the last detected vehicle	The frame with the information on the last detected vehicle is displayed in this area
9	The preview area of the events from the LP recognition channel	The events of the LPR channels are displayed in this area For the NUMBER_DETECTED event to include the entire frame (the image parameter) and the cropped enlarged part with the number (the image_plate parameter), encoded using Base64, you must set the 1 value in the string parameter of the PicturesInNumberDetectedEvent registry key (see Vertical solutions)
10	The preview area of the events from cameras	The events from cameras are displayed in this area
