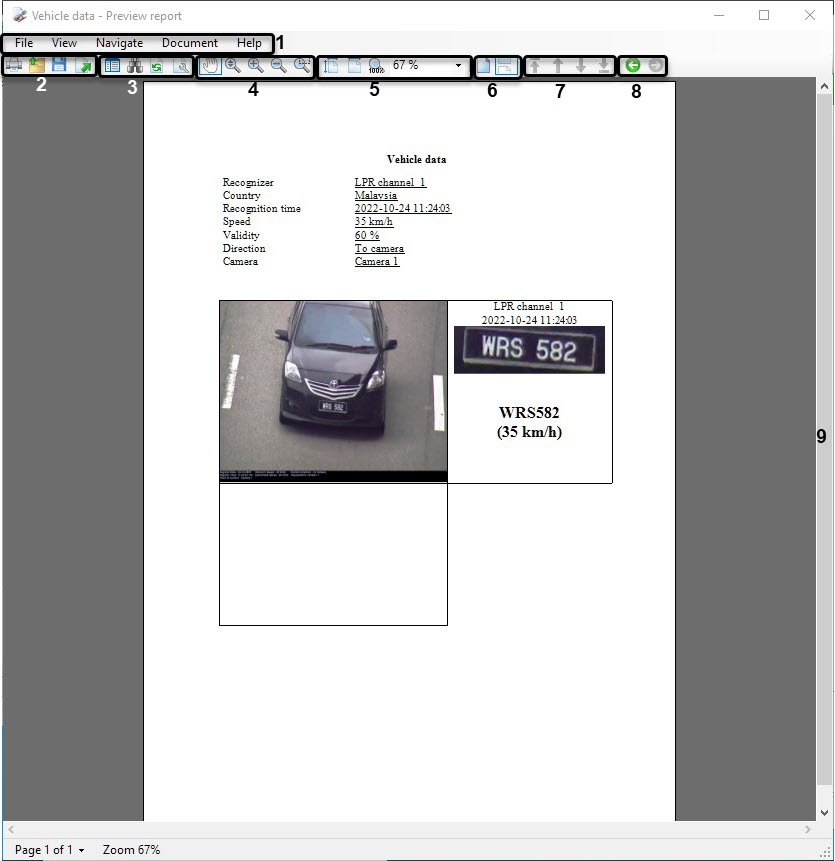

The preview report program window contains the following interface elements.

The preview report interface description is presented in the following table.

Element number

Description

1

Main menu for viewing the reports (operations with a file, operations of previewing and navigating the report, operation with a report, viewing the information about program).

2

Group of elements for operations with a report file (printing, opening, saving, exporting).

3

Group of elements for operations with a report (displaying, content, search, update, edit).

4

Selecting the scaling mode and the scale of displaying the report.

5

Zooming the report.

6

Selecting the mode of displaying the report (page-by-page, nonstop page-by-page).

7

Group of elements for navigation in the report.

8

Undo or redo the last action.

9

Field for displaying the formed report.
