If there are no Vehicle Tracer errors, the Server status button in the right upper corner of Online monitor window is green . If errors are registered, the button is red .

To view the Vehicle Tracer errors, do the following:

  1. Click the Server status button.

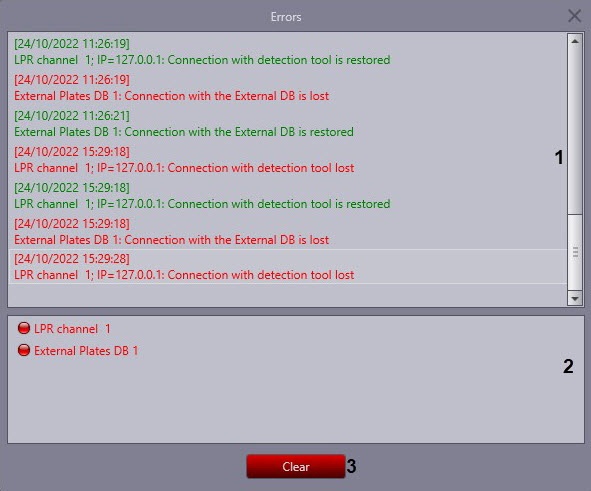

  2. The Errors dialog window will be displayed in result.
  3. The data about the occurred errors is displayed in the field (1).
  4. The list of all possible error sources is displayed in the field (2): LPR channels and/or external databases. Current error sources are marked by the  sign, idle sources are marked by the  sign.
  5. To delete the data about the errors and close the Errors dialog window, click the Clear button (3).
  6. To close the Errors dialog window without deleting the data about the errors, click the  button.

Viewing the Vehicle Tracer errors is completed.
