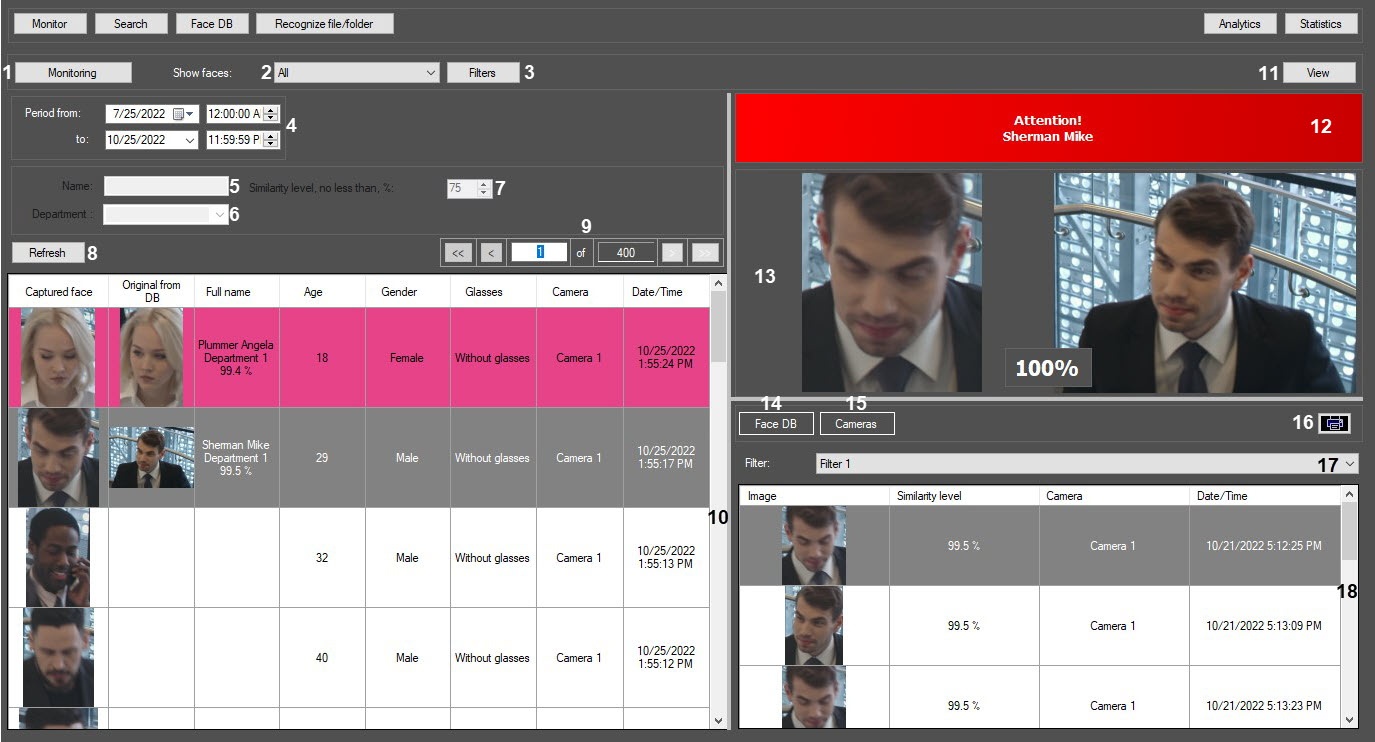

The following figure shows the Monitoring of captured and recognized faces window interface:

The components of the Monitoring of captured and recognized faces interface are described in the following table.

Number of component

Comments

1

The Monitoring button

2Show faces drop-down list to select the captured persons display option: All, Only recognized, Only unrecognized
3

The Filters button for filtering by cameras and additional face characteristics

4

Elements for setting the start and end date and time of the time interval for face search

5

The Name field for entering the name of a recognized person

Note. The field is editable if the Only recognized option is selected in the Show faces drop-down list.

6

The Department field for selecting the department of a recognized person

Note. The field is editable if the Only recognized option is selected in the Show faces drop-down list.

7

The Similarity level, no less than, % field for setting the minimal similarity level

Note. The field is editable if the Only recognized option is selected in the Show faces drop-down list.

8

The Refresh button for updating the displayed data

9Elements for navigation through captured faces
10

Filtered list of captured faces

The following columns are displayed:

11The View button for configuring the view of the monitoring window
12The field for displaying the full name of the recognized person
13Photos of the captured face and the reference image, the information on which is stored in the face database
14The Face DB button for displaying in the area (19) the information on the selected recognized face
15The Cameras button for displaying in the area (19) the ten last captured faces according to the selected search filter (18)
16The Print button * for exporting the filtered data to a report file
17A drop-down list for selecting the search filter (see The Face Search window)
18

The area for displaying search results with the specified filtering conditions.

When the Face DB section is selected using the Face DB button (14), the following columns are displayed:

  • Image;
  • Full name;
  • Similarity level;
  • Comment;
  • Date/Time.

When the Cameras section is selected using the Cameras button (15), the following columns are displayed:

  • Image;
  • Similarity level;
  • Camera;
  • Date/Time.

* The element's name is not displayed in the settings panel.
