To create the Monitor object, do the following:

  1. Select the required Display object  in the Interfaces tab of the System settings dialog box.

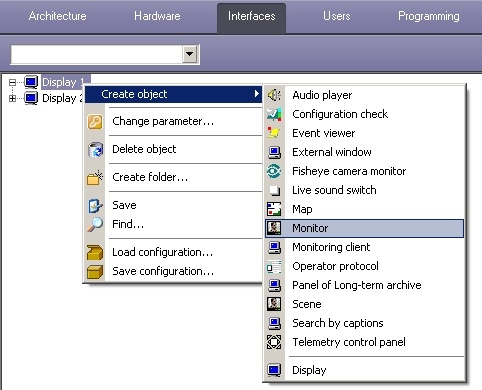

  2. Double-click the right mouse button upon the selected Display object  and select Create object > Monitor in the contextual window.

  3. Set the number and name of the Monitor object and click the Apply button. As a result the settings panel for the Monitor object will be displayed.

    Important!

    The Monitor object number should be a positive integer. You should not use numbers containing commas, dots or any other characters, otherwise the Monitor will become non-functional.

The Monitor object is now created.
